Scriber/Placer/Tray Setter Scribing/Attaching/Pick-and-Place Machine
A rich lineup of products support the realization of factory automation in board manufacturing. These machines are characterized by high speed and high accuracy.
Fully provided with Yamaha's propriety technology, these machines support factory automation for manufacturing various printed circuit boards from ceramic substrate to flexible PCBs.
When individual machines are combined according to your requirements, considerable labor savings and automation are realized.
When individual machines are combined according to your requirements, considerable labor savings and automation are realized.
Features of Scriber/Placer/Tray Setter

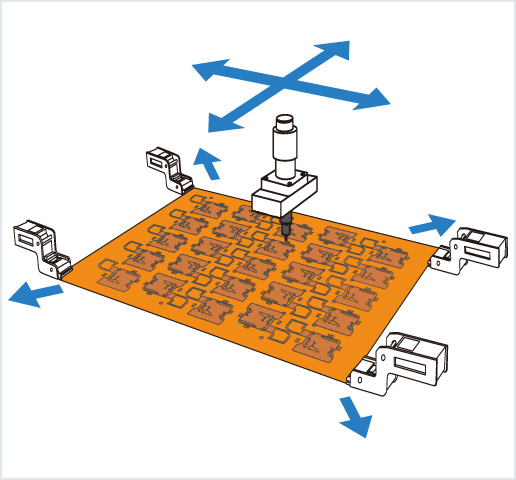

Round hole punching equipment for film materials
- Punching at high speed (12 holes/second) with high accuracy (±20 μm) realized
- Model best suited for punching tooling holes for exposure and outline machining
- In addition to film materials, some thick sheet products also supported

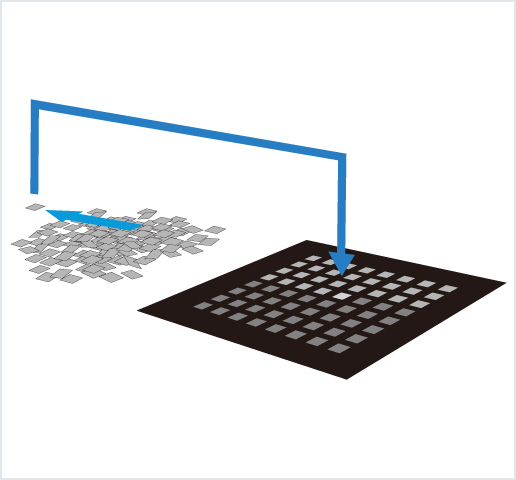

![[ Image ] Tray setter: Tray arranging machine for small-sized pieces](./file/481/filmpuncher_feature_img04.jpg)

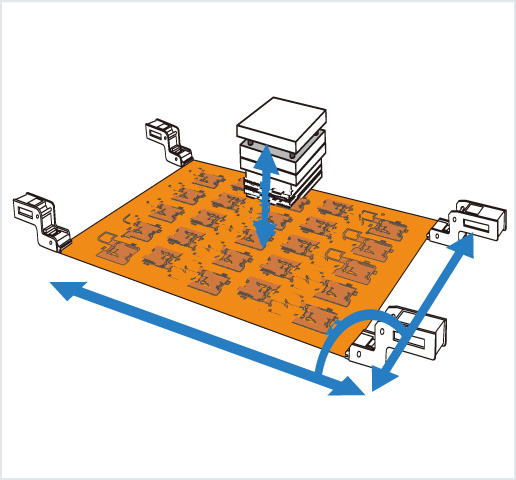

Irregular hole/outline punching equipment using a small-sized post-less die
- High-accuracy and low-cost irregular hole punching using a compact die
- Both half-cutting type and die supported
- Support of punched chip automatic collection possible (Optional)

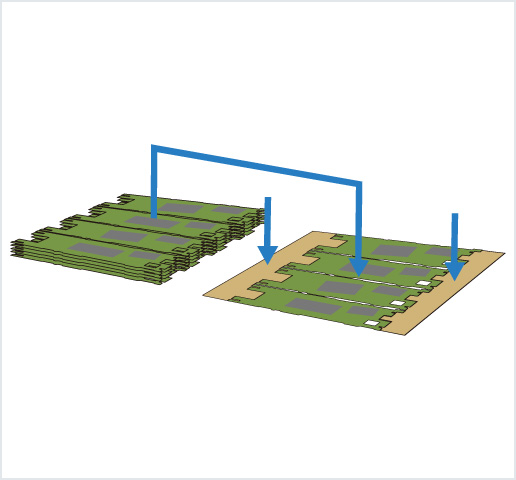

![[ Image ] PCB placer: High-accuracy in-frame arraying machine for HDI PCBs](./file/482/trimpuncher_feature_img06.jpg)

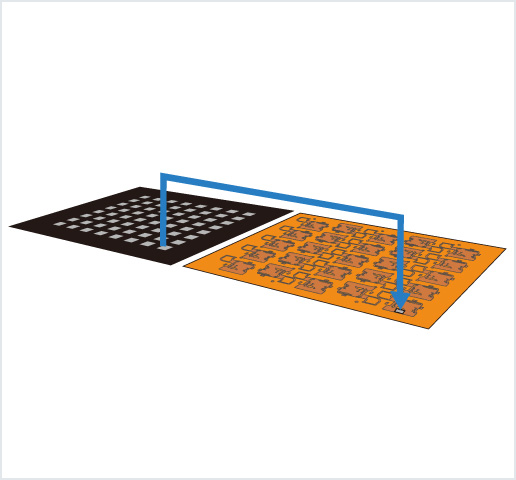

Placer:
High-accuracy stiffener attaching machine for flexible PCBs
- SUS stiffener attachment process automated, speed and accuracy improved
- Simple machine structure and compact machine size
- High-speed attaching motion using four heater heads
![[ Image ] Placer: High-accuracy stiffener attaching machine for flexible PCBs](./file/407/pm_feature_img01.jpg)

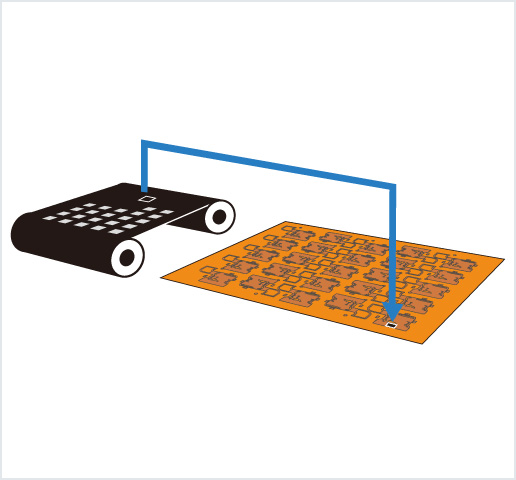

Film placer:
EMI shielding film attaching machine
- Roll EMI shielding film punched and attached onto flexible PCB
- Compared to manual operation, improvement and stabilization of attachment quality are possible
- No positioning hole for attachment required and surface mounting efficiency improved
![[ Image ] Film placer: EMI shielding film attaching machine](./file/408/pm_feature_img02.jpg)

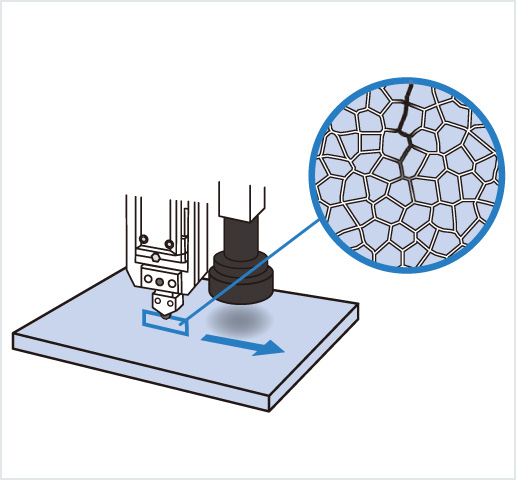

Scriber:
Automatic splitting machine for ceramic substrate
- Fine cracks generated by a diamond rotary cutter to divide the board after baking
- Washing process not required, and splitting after mounting parts possible
- Machining with high accuracy possible without being affected by contraction due to a change in temperature at the time of baking
![[ Image ] Scriber: Automatic splitting machine for ceramic substrate](./file/409/pm_feature_img05.jpg)
Line up
Film Puncher
-

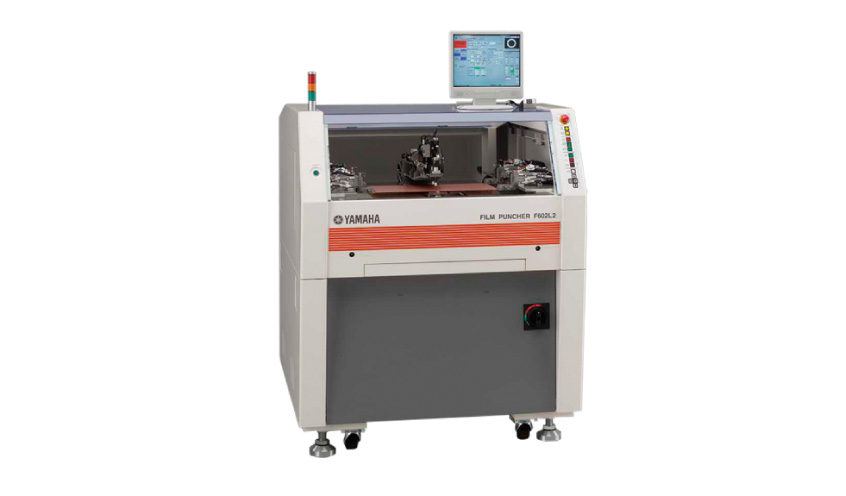

High-speed model F602 S2- High speed
- 545×365
- 0.24s/shot
- 2 heads
-

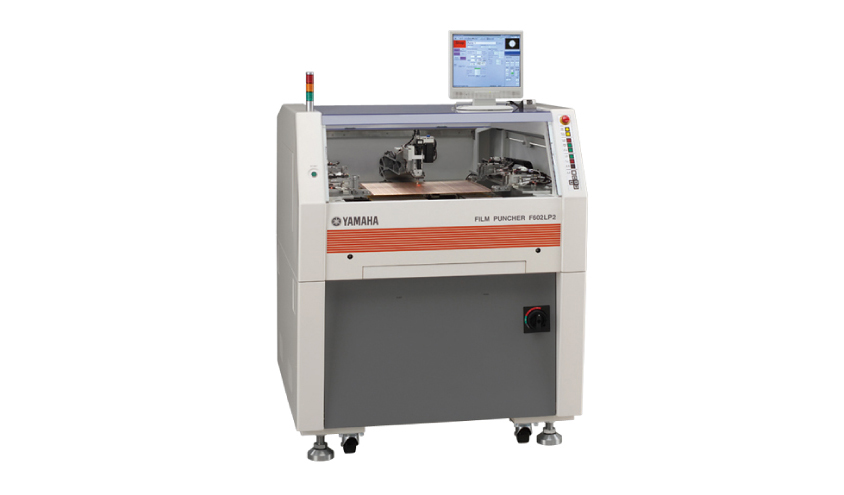

High-thrust model F602 SP2- High thrust
- 545×365
- 0.35s/shot
- 1 heads
-

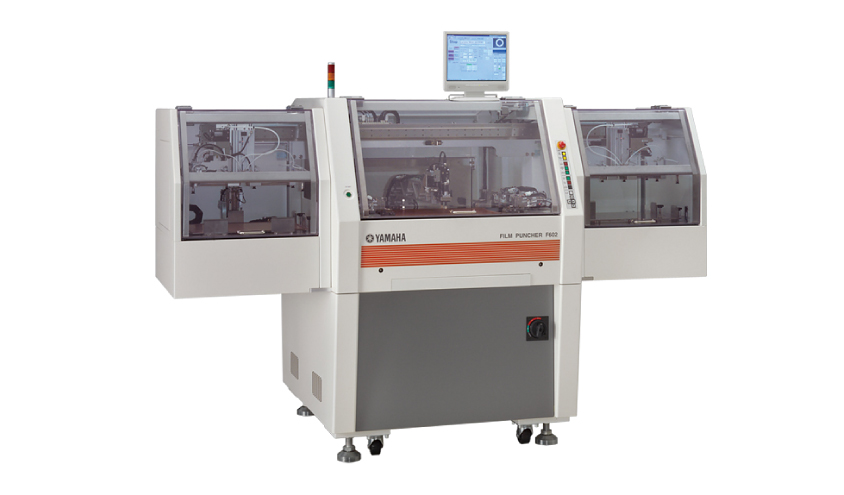

High-speed model/automatic loading/unloading F602 S2-ald- Automatic
- 500×365
- 0.24s/shot
- 2 heads
-

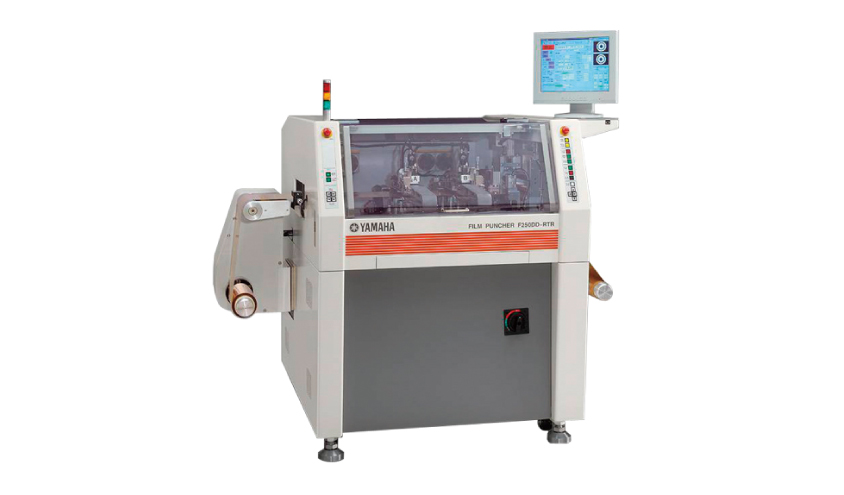

Roll to Roll supported model F250DD-RTR / GFR- Roll to Roll
- W250
- 0.08s/shot
- 4 heads
Trim Puncher
-

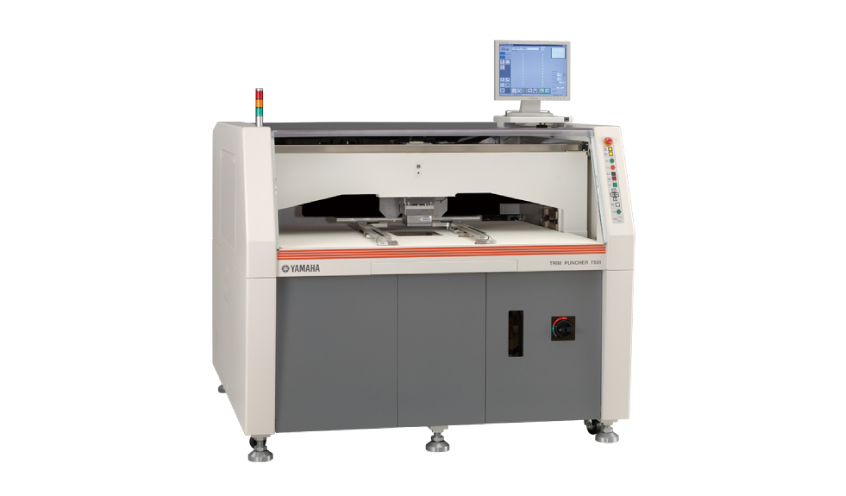

High-speed model T501- High speed
- 510×510
- 0.55s/shot
-

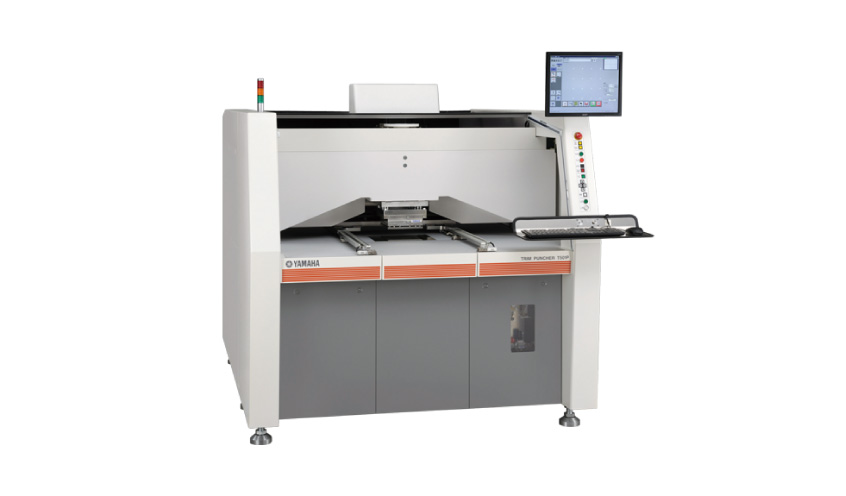

High-thrust model T501P- High thrust
- 510×610
- 0.60s/shot
-

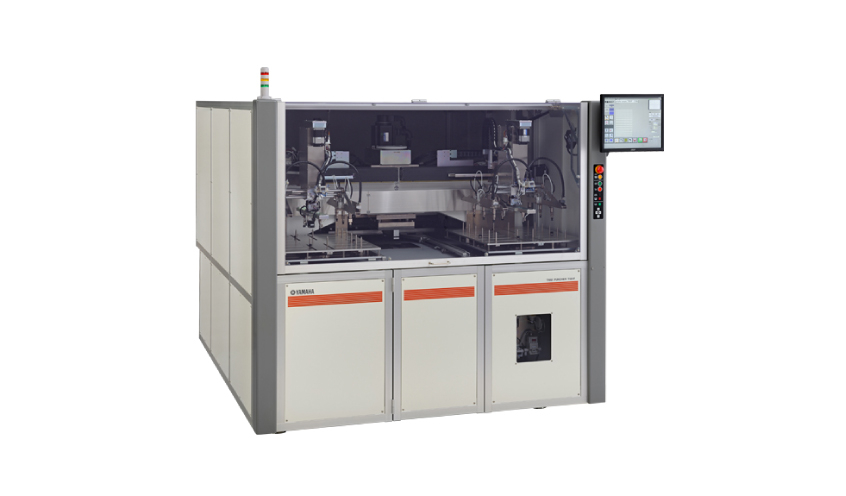

High-thrust model/automatic loading/unloading support T501P-HA- High thrust
- 510×610
- 0.60s/shot
- Automatic
-

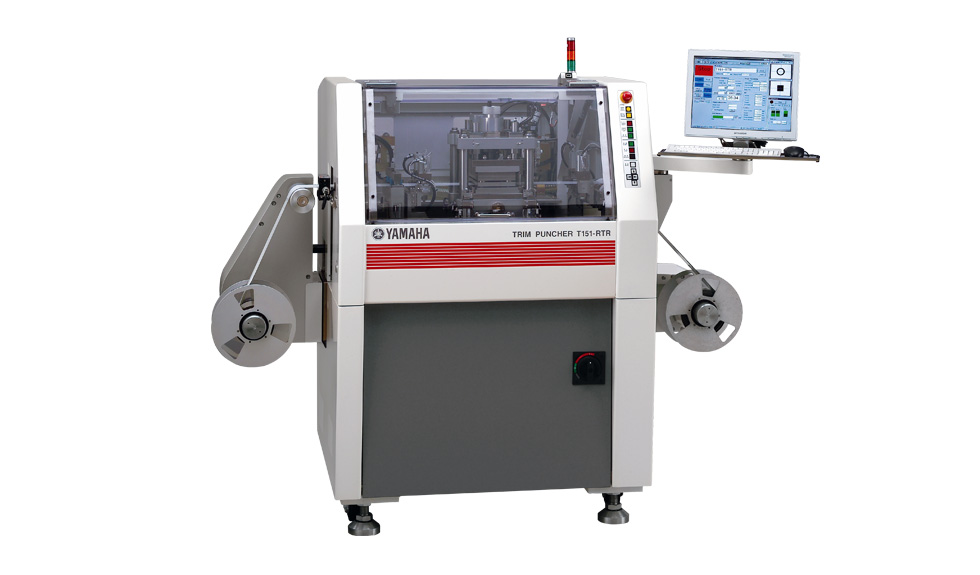

Roll to Roll supported model T151-RTR- Roll to Roll
- W158
- 1.8s/shot
Others
-

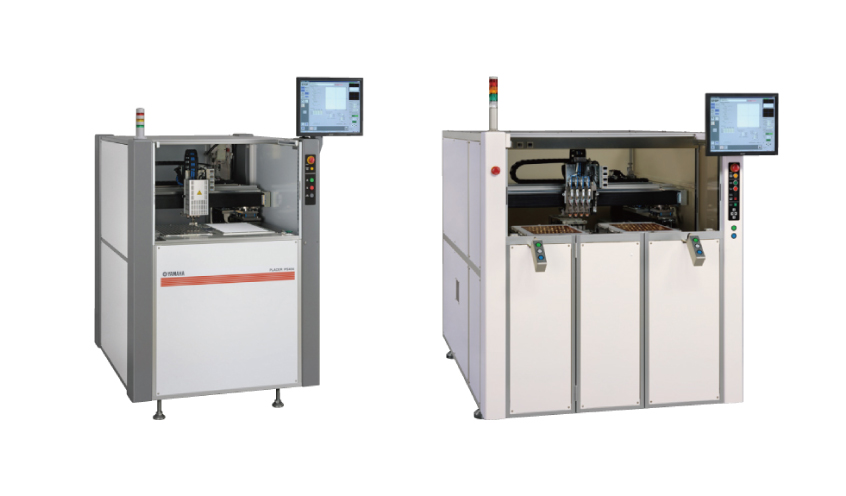

Automatic stiffener attaching machine PlacerA machine for attaching stiffeners onto flexible PCBs. With an accuracy of ±50 μm, stiffeners are attached at high speeds and automatically. -

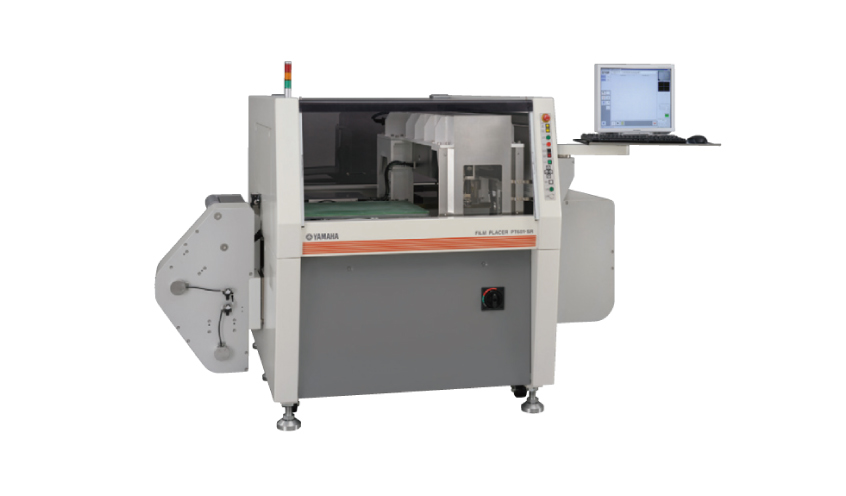

Automatic shielding film attaching machine Film PlacerA machine for attaching EMI shielding film onto flexible PCBs. With an accuracy of ±50 μm, roll film is automatically punched and attached. -

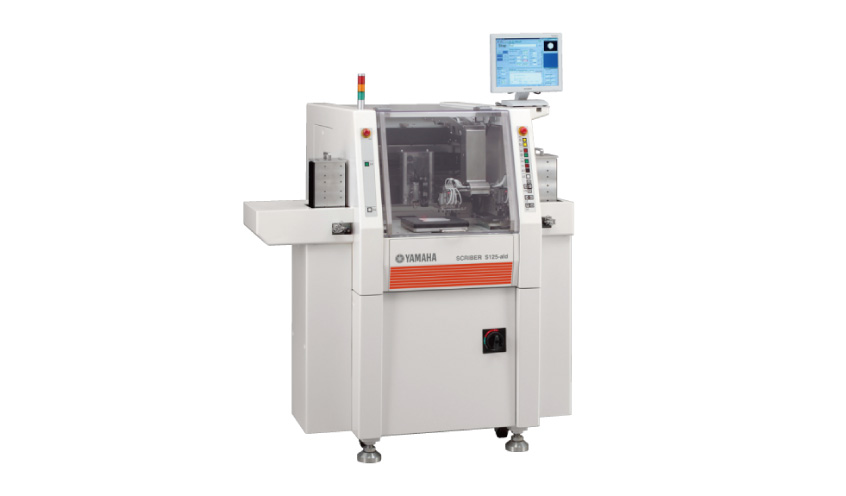

Automatic ceramic substrate scribing machine ScriberA machine automatically splitting ceramic substrate. With an accuracy of ±30 μm, up to 230 x 230 mm in size can be supported.
