High-thrust model/large sheet support T901

High-thrust model/large sheet support
T901
[ Image ] High-thrust model・large sheet support T901
A high-thrust type of machine in which a work sheet is loaded/unloaded manually. A large sheet up to 900 x 900 mm is supported. Up to 7 t thrust trimming at high speed (1.50 seconds/hole) with high accuracy (±20 μm) is possible.

Applications

Application examples
  • [ Image ] Flex PCB

    Flex PCB

  • [ Image ] Rigid Flex PCB

    Rigid Flex PCB

  • [ Image ] Rigid PCB

    Rigid PCB

  • [ Image ] Touch panel

    Touch panel

  • [ Image ] Metallic board etc.

    Metallic board etc.
Max. work sheet size X900 x Y900mm
Work sheet transfer Loading：Manual　Unloading：Manual
Thrust power Approx. 7t

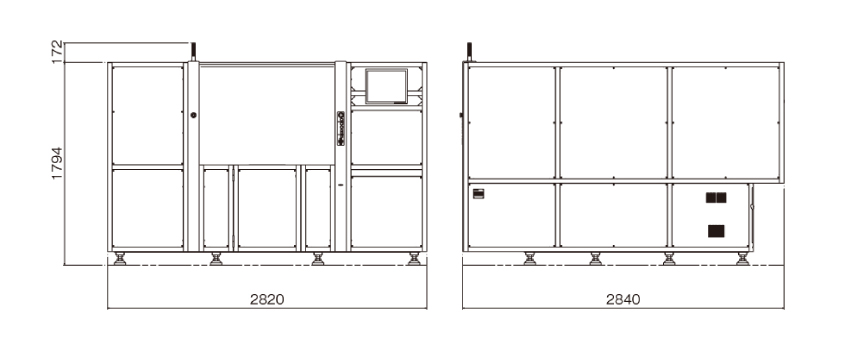

Dimensions

T901
[ Image ] Dimensions　T901

Specifications

Model T901
Type T901-HN
Application examples Flex PCB, Various film materials etc.
Processing capability Work sheet size X340~900mm / Y340~900mm
Range*1 Range excluding an area of X15 x Y37mm from four corners of work sheet
Accuracy*2 ±30μm
Speed*2 1.5 s/shot
Punching head No. of heads 1
Thrust Power Approx. 68,600N (7,000kgf)
Die module Max. punching size X150mm x Y150mm
Max. half-cutting size X295mm x Y207mm
Built-in RFID Provided
Work sheet transfer Loading / Unloading Manual
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count
Usage environment Weight Approx. 5,000kg
Power supply 3-phase, 180 to 240V AC, 50/60Hz, 5kVA
Dry air 0.5MPa
  1. The actual processing range varies depending on the die module shape, holding range, etc.
  2. Data taken using our test work sheet.
