High-speed model/two-head support T502

High-speed model/two-head support
T502
[ Image ] High-speed model・two-head support T502
A high-speed type of machine in which a work sheet is loaded/unloaded manually. Double heads are installed, and 0.6 t thrust trimming at high speed (0.70 seconds/hole) with high accuracy (±20 μm) is possible for each head.

Applications

Application examples
  • [ Image ] Flex PCB

    Flex PCB

  • [ Image ] Touch panel

    Touch panel

  • [ Image ] Various film materials

    Various film materials
Max. work sheet size X510 x Y510mm
Work sheet transfer Loading：Manual　Unloading：Manual
Thrust power 0.6t

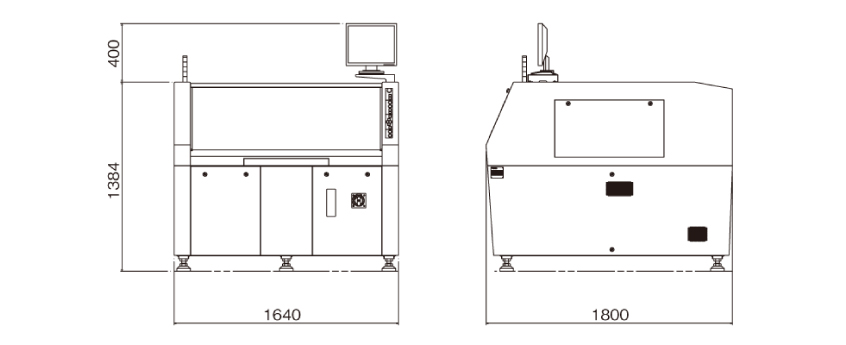

Dimensions

T502
[ Image ] Dimensions　T502

Specifications

Model T502
Type T502-2
Application examples Flex PCB, Various film materials etc.
Processing capability Work sheet size X150~510mm / Y150~510mm
Range*1 Range excluding an area of X11 x Y41mm from four corners of work sheet
Accuracy*2 ±20μm
Speed*2 0.7 s/shot
Punching head No. of heads 2
Thrust Power Approx. 5,900N (600kgf)
Die module Max. punching size Small : X25 x Y40mm
Max. half-cutting size
Built-in RFID Provided
Work sheet transfer Loading / Unloading Manual
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count
Usage environment Weight Approx. 2,150kg
Power supply 1-phase, 180 to 240V AC, 50/60Hz, 3kVA
Dry air 0.5MPa
  1. The actual processing range varies depending on the die module shape, holding range, etc.
  2. Data taken using our test work sheet.
