High-thrust model/automatic loading/unloading support T501P-HA
High-thrust model/automatic loading/unloading support
T501P-HA
T501P-HA

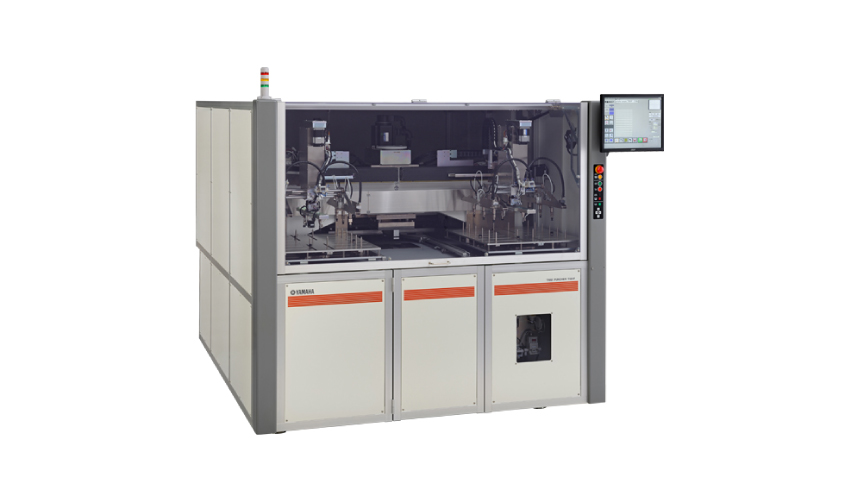

![[ Image ] High-thrust model・automatic loading/unloading support T501P-HA](./file/150/t501p_ha_main.jpg)
A full-automatic type of machine in which a work sheet is loaded/unloaded automatically. Up to 5 t thrust trimming at high speed (0.60 seconds/hole) with high accuracy (±20 μm) is possible. This machine contributes to labor savings.
Applications
| Application examples |
|
|---|
![[ Image ] Flex PCB](./file/451/work_flexible_img.jpg)
![[ Image ] Rigid Flex PCB](./file/453/work_rigidflex_img.jpg)
![[ Image ] Rigid PCB](./file/461/work_rigid_img.jpg)
![[ Image ] Touch panel](./file/455/work_touchpanel_img.jpg)
![[ Image ] Metallic board etc.](./file/460/work_metal_img.jpg)
| Max. work sheet size | X510 x Y610mm |
|---|---|
| Work sheet transfer | Loading：Automatic Unloading：Automatic |
| Thrust power | Approx. 5t |
Dimensions
T501P-HA

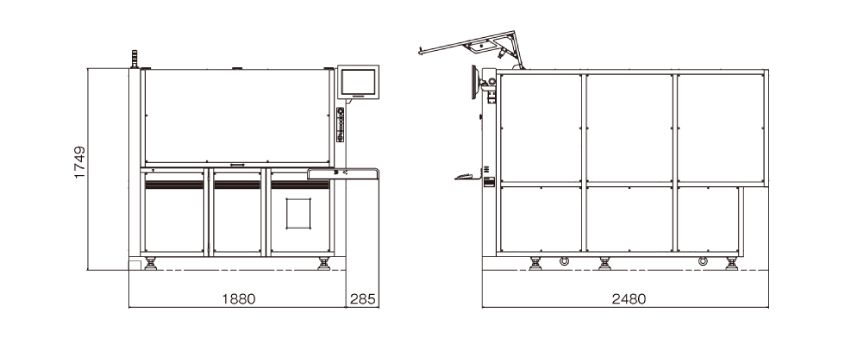

![[ Image ] Dimensions T501P-HA](./file/151/t501p_ha_size_img01.jpg)
Specifications
| Model | T501P | |
|---|---|---|
| Type | T501P-HA | |
| Application examples | Flex PCB, Various film materials etc. | |
| Processing capability | Work sheet size | X150~510mm / Y150~610mm |
| Range*1 | Range excluding an area of X12 x Y55mm from four corners of work sheet | |
| Accuracy*2 | ±20μm | |
| Speed*2 | 0.6 s/shot | |
| Punching head | No. of heads | 1 |
| Thrust Power | Approx. 49,000N (5,000kgf) | |
| Die module | Max. punching size | X150mm x Y150mm |
| Max. half-cutting size | X265mm x Y195mm | |
| Built-in RFID | Provided | |
| Work sheet transfer | Loading / Unloading | Automatic |
| Image processing | Camera view | X4.8 x Y3.6mm (standard) |
| Pattern detection | Pattern recognition via grayscale | |
| Illumination type | Transmission light, reflection light | |
| Hardware | Interface | LAN,USB |
| Display | 17 inch LCD with touch panel | |
| Software | OS | Windows7 |
| Production support function | Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count | |
| Usage environment | Weight | Approx. 3,000kg |
| Power supply | 3-phase, 180 to 240V AC, 50/60Hz, 5kVA | |
| Dry air | 0.5MPa | |
- The actual processing range varies depending on the die module shape, holding range, etc.
- Data taken using our test work sheet.
