Chamfering system for aluminum wheels
Chamfering system for aluminum wheels
![[ Image ] Chamfering system for aluminum wheels](./file/136/tr057ac_main.jpg)
Machining burrs formed at decorative wheel rims removed
A head specially designed for aluminum wheels removes burrs formed on the decorative wheel rims. With a dedicated tool holder, high-quality chamfering is realized.- A tool holder specially developed for chamfering decorative aluminum wheel rims is installed on a small robot.
- Space saving realized by an NC index rotating the workpiece to supplement the robot's range of motion.
- Automatic origin indexing is performed by a dedicated sensor. This made positioning work during setup easy.
Applications
| Application examples |
|
|---|
![[ Image ] Aluminum wheels for automobile](./file/137/robots_work_img07.jpg)
| Footprint | W1250mm x D1250mm+α x H2000mm |
|---|---|
| Handling method | Tool grasping type |
Dimensions

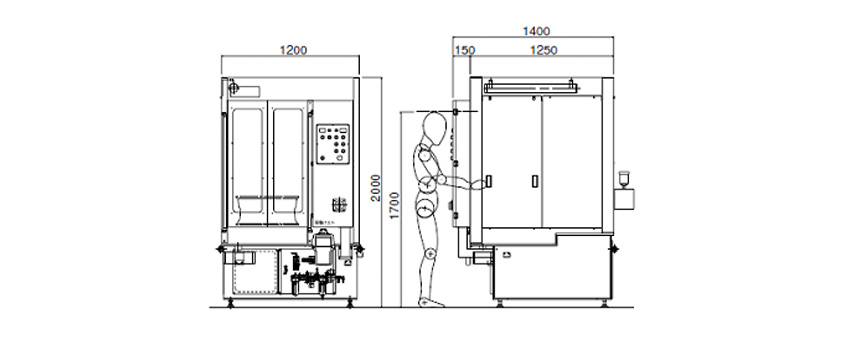

![[ Image ] Dimensions](./file/141/tr057ac_size_img01.gif)
Specification
| Type | TR057AC (Decorative aluminum wheel rim chamfer machine) |
|---|---|
| Footprint | W1250mm x D1250mm+α x H2000mm |
| Weight | 800kg |
| Application examples | 14–20-in Workpiece clamp jig (change attachments every 3in or 5in) |
| Workpiece supply and removal | Manual supply and removal by operator |
| Equipment specifications | Workpiece NC index (using robot added axis NC motor) Workpiece auto-centering clamp Workpiece automatic origin detection system |
| Tool holder | Air-driven motor, floating mechanism for deburring |
| Machine type selection | 1–99 numerical selection system |
| Robot | FANUC Robot LR Mate 200iD/7 customized by Yamaha |
| Power supply | 3-phase, 200 to 220V+10％/-15％ AC, 50/60Hz |
| Power supply capacity | 1.2kVA |
| Air supply | Air pressure: 0.5 MPa Consumption: 300 NL/min |
| Others | Automated door with an area sensor (can be connected to a synchronizer) |
