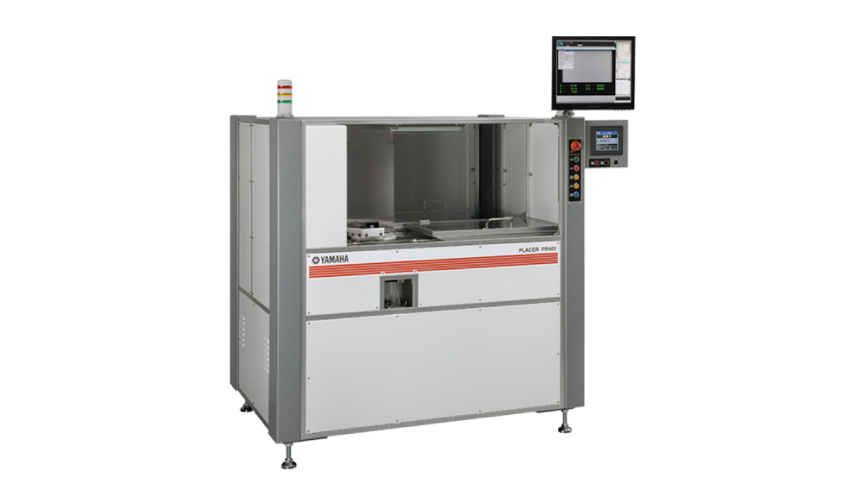

Automatic small pieces arranging machine Tray Setter
PR401
![[ Image ] Automatic small pieces arranging machine・Tray Setter PR401](./file/203/tray_setter_main.jpg)

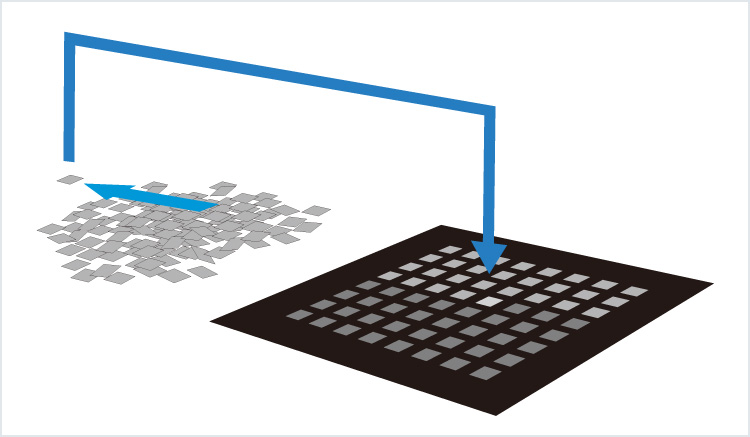

A machine for arranging small-sized pieces such as stiffeners onto a tray. Chip boards of 3 to 15 mm are arranged at high speed automatically.
![[ Image ] Tray Setter](./file/466/tray_setter_img01.jpg)
- Automatic identification of the front face and back face of chips and high-speed (0.3 seconds/piece) arrangement possible
- Considerable manpower saving and automation realized in combined use with a placer
Applications
| Application examples |
|
|---|
![[ Image ] Small-sized stiffener and others](./file/460/work_metal_img.jpg)
| Max. work piece size | X15mm x Y15mm |
|---|---|
| Arranging speed | 0.33 s/piece |
| Feeding method | Arranged piece: Manual Tray: Manual |

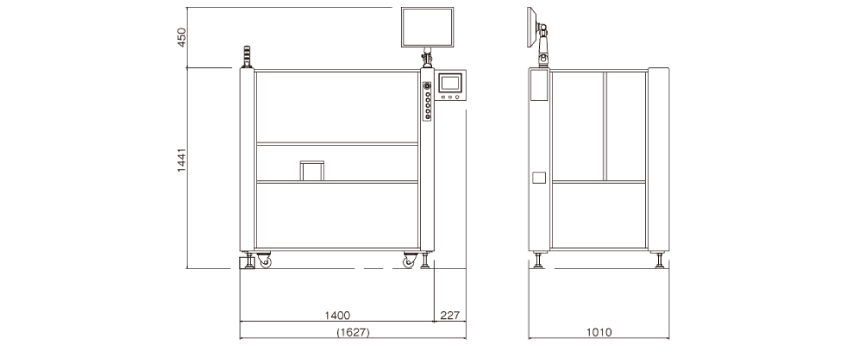

Dimensions
PR401
![[ Image ] Dimensions PT601-SR](./file/204/tray_setter_size_img01.jpg)
Specifications
| Model | PR401 | |
|---|---|---|
| Type | PR401-T | |
| Application examples | Various types of stiffener | |
| Arranged piece | Piece size | X3~15mm / Y3~15mm |
| Piece thickness | 0.05mm~0.5mm | |
| Arranging capacity | Accuracy *1 | ±200μm |
| Speed *1 | 0.33 s/piece | |
| Arrangement table | Material | Glass epoxy resin |
| Size | X254mm / Y427mm | |
| Piece | Feed | Manual |
| Tray | Loading / Unloading | Manual |
| Image processing | Camera view | X50mm x Y50mm (standard) |
| Pattern detection | Pattern recognition via grayscale | |
| Illumination type | Transmission light, reflection light | |
| Hardware | Interface | LAN,USB |
| Display | 17 inch LCD with touch panel | |
| Software | OS | Windows7 |
| Production support function | Front/rear determination, angle correction (180º) | |
| Usage environment | Weight | Approx. 1,000kg |
| Power supply | 3-phase, 180 to 220V AC, 50/60Hz, 1kVA | |
| Dry air | 0.5MPa | |
- Data taken using our test work sheet
