Automatic HDI PCB in-frame arraying machine PCB Placer

PP614

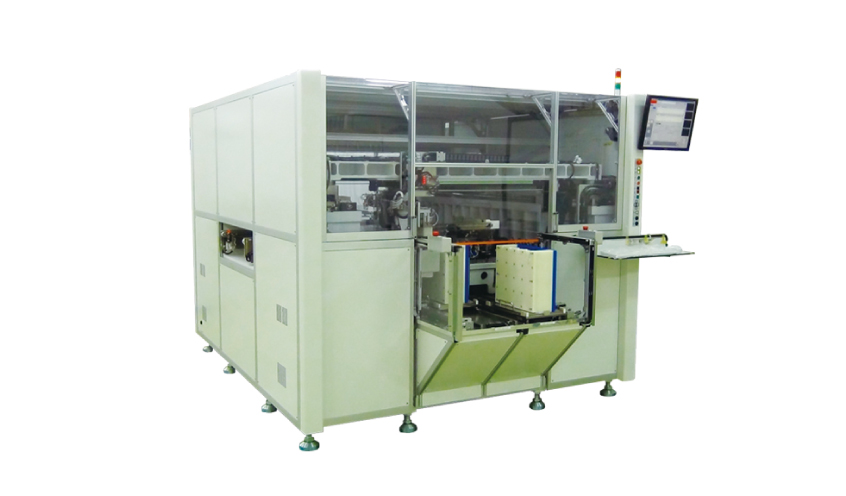

[ Image ] Automatic HDI PCB in-frame arraying machine・PCB Placer PP614

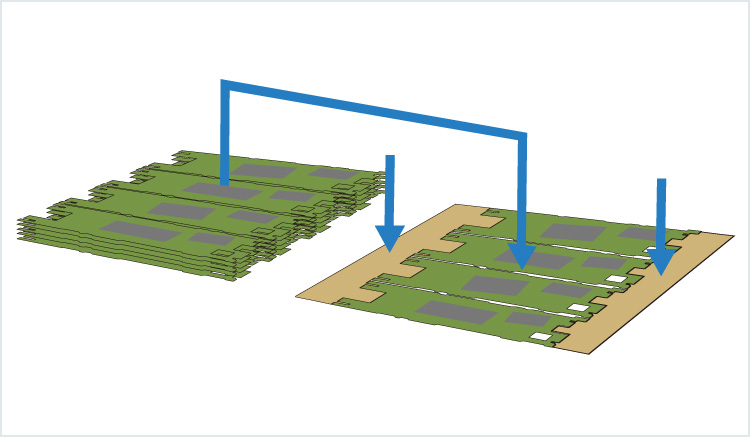

A machine for automatically arraying HDI board pieces in the frame with high accuracy. With an arraying accuracy of ±50 μm, an array for the mounting process is created.
[ Image ] PCB Placer
  • HDI PCBs arranged in the frame automatically
  • Material costs reduced by improved PCB surface mounting efficiency
  • Reduction of part mounting failures attributable to PCB contraction and disposal of defective chips before mounting made possible

Applications

Application examples
  • [ Image ] HDI PCB

    HDI PCB
　　　　　　 　　　　　　　
Max. work sheet size X140mm x Y65mm
Speed *1 7.0 s/array
Feeding method Automatic

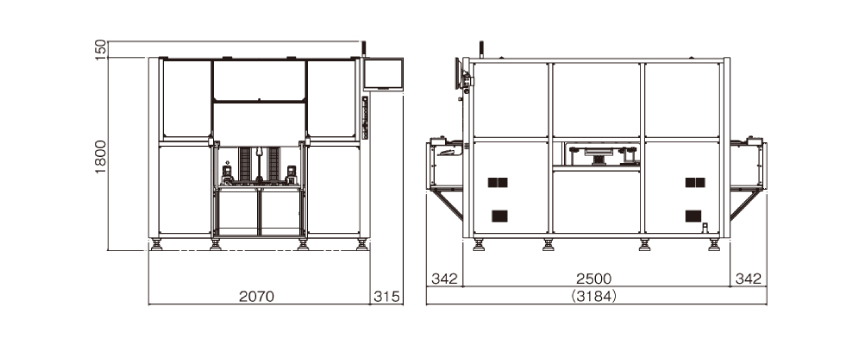

Dimensions

PP614
[ Image ] Dimensions PP614

Specifications

Model PP614
Type PP614
Application examples HDI PCB
Application examples Work sheet size X45~140mm / Y30~65mm
Work sheet thickness 0.5mm~1.6mm
Max. weight 25 g/piece
Arraying capacity Accuracy *1 ±30μm
Speed *1 7.0sec/array
Frame Size X3~80mm / Y50～320mm
Work sheet transfer Loading / Unloading Automatic
Image processing Camera view X4.8mm x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Usage environment Weight 約5,000kg
Power supply 3-phase, 200 to 220V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. Data taken using our test work sheet
