High Frequency Characteristics Measurement System MP502/MP502-A
High Frequency Characteristics Measurement System
MP502/MP502-A
MP502/MP502-A

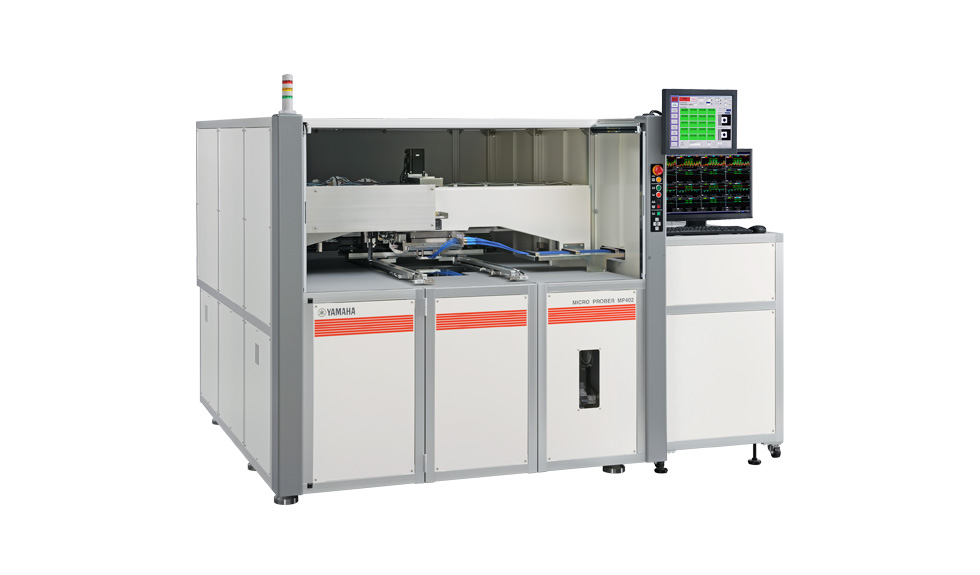

![[ Image ]High Frequency Characteristics Measurement System MP502 / MP502-A](./file/563/mp502_mp502-a_main.jpg)
Enables the measurement of frequency characteristics with contact positioning accuracy of +/- 20 μm. Also supports automated loading and unloading.
Applications
| Application examples |
|
|---|
![[ Image ] Rigid PCB](./file/461/work_rigid_img.jpg)
![[ Image ] Flex PCB](./file/451/work_flexible_img.jpg)
![[ Image ] Rigid Flex PCB](./file/453/work_rigidflex_img.jpg)
| Max. work sheet size | (X)510 x (Y)610mm |
|---|---|
| Max. test fixture size | (X)200 x (Y)200mm |
| Work sheet transfer | Loading:Manual Unloading:Manual（MP502-A Loading:Automatic Unloading：Automatic） |
Dimensions
MP502

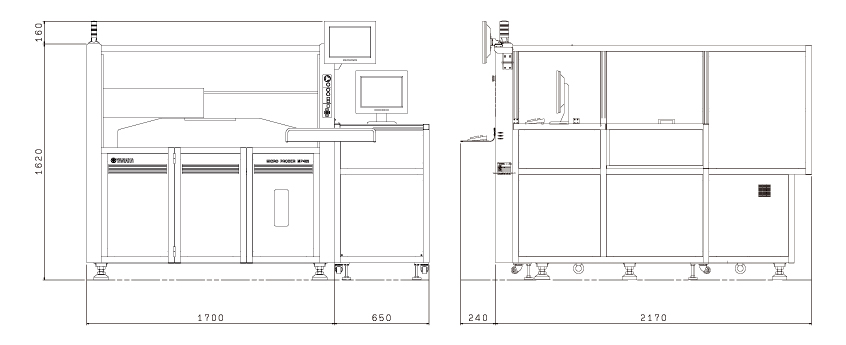

![[ Image ] Dimensions MP502](./file/565/mp502_mp502-a_size_img01.jpg)
Specifications
| Model | MP502 | MP502-A | |
|---|---|---|---|
| Application examples | Rigid PCBs, Flexible PCBs, Rigid-flex PCBs etc., with high speed transmission circuits | ||
| Test capability | Work sheet size | X150～510mm / Y150～610mm | |
| Max. test fixture size | X200 x Y200mm | ||
| Positioning accuracy*1 | ±20μm | ||
| Work sheet transfer | Loading / Unloading | Manual | Automatic |
| Usage environment | Weight | Approx. 2,500kg | Approx. 3,000kg |
| Measurement item*2 | Insertion loss, Return loss, VSWR, isolation, TDR etc. | ||
- Indicates repeatability of relative positioning of in-house performance tests.
- Measurable items and measurement performance of each item differ depending on the specifications/performance of the vector network analyzer.
