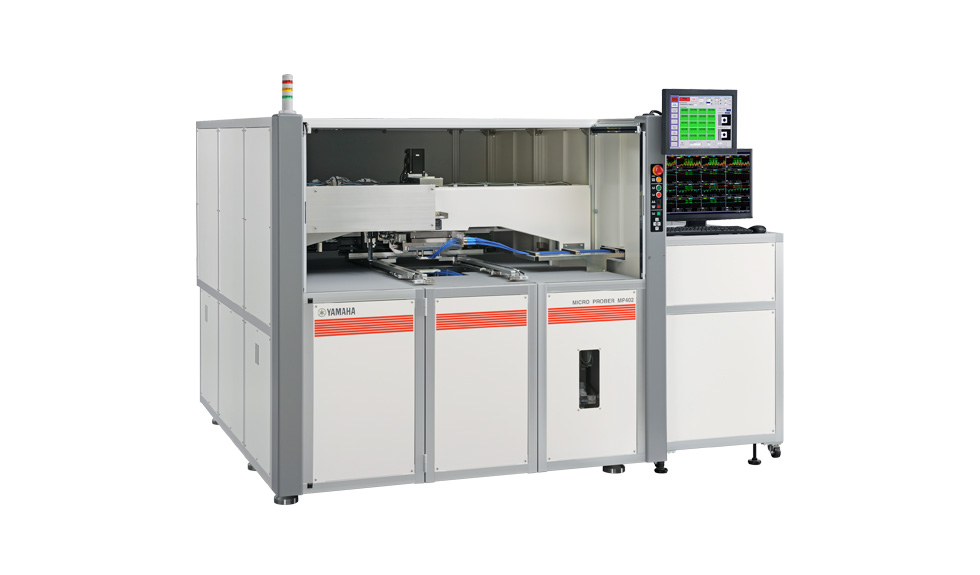

Micro Prober MP Series High Frequency Characteristics Measurement System
Industry-leading systems that measure the frequency characteristics of high-speed transmission PCBs precisely and automatically.
The Micro Prober MP Series are systems for measuring the frequency characteristics of bare boards automatically, achieving both high contact accuracy and repetition stability simultaneously. These systems, which are combined with vector network analyzers to enable measurement of multi-piece-simultaneous at high speed, are optimum for inspection, evaluation, and analysis of circuit boards that will lead to the 5G society.
Features of Micro Prober MP Series

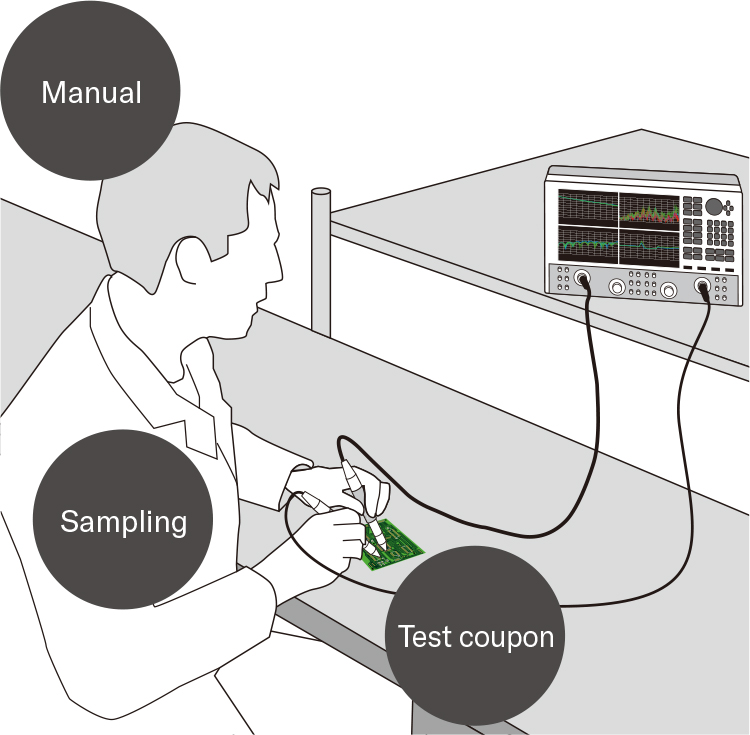

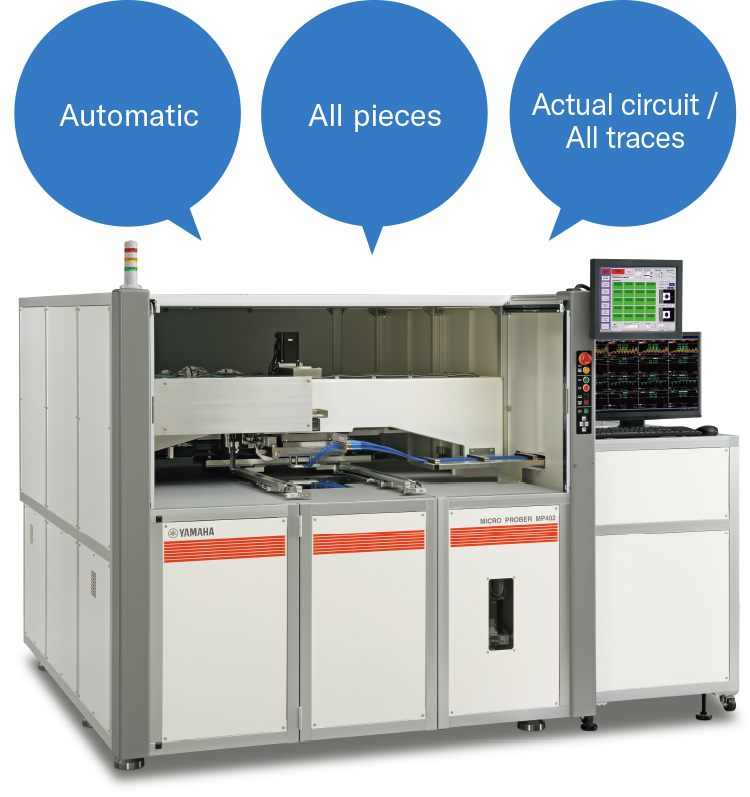

Measure all high-frequency characteristics
Automation allows measurement of all high frequency characteristics, which was previously difficult to achieve.![[ Image ] Measure all high-frequency characteristics Before](./file/633/mp_micro_prober_feature_img01-1.jpg)
![[ Image ] Measure all high-frequency characteristics After](./file/640/mp_micro_prober_feature_img01-2.jpg)

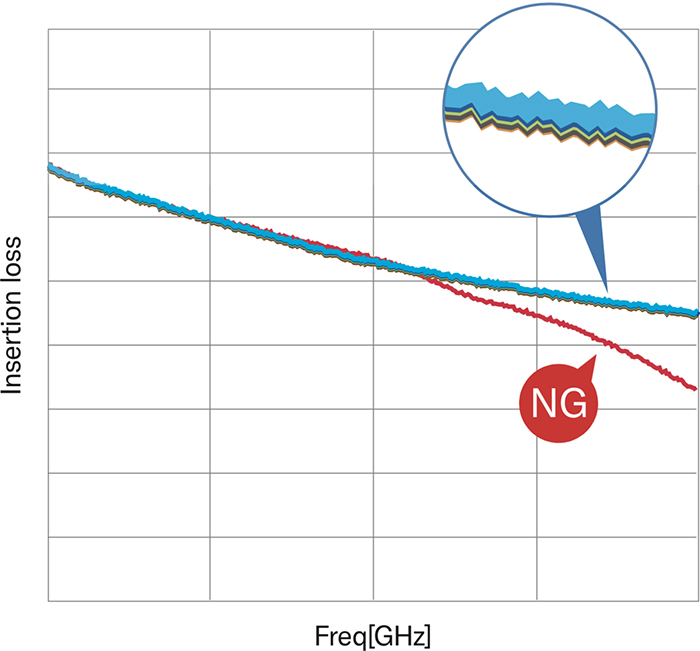

High repeatability and reproducibility

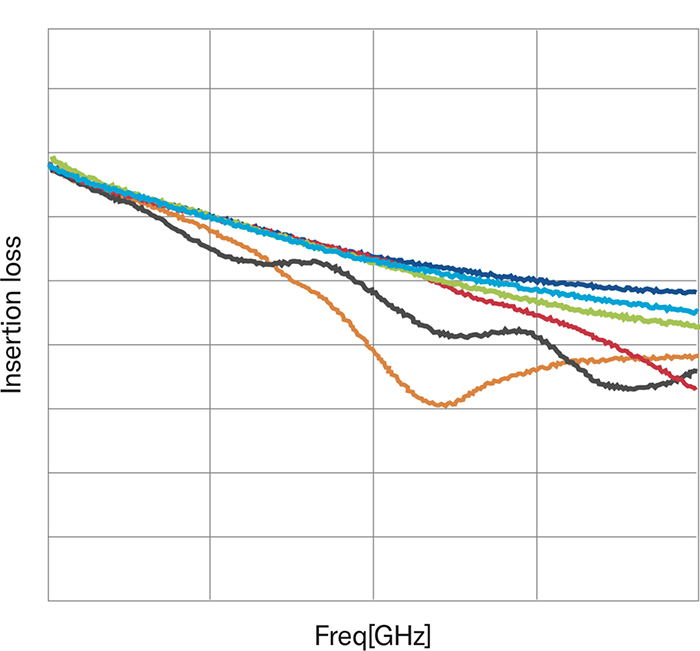

Probe contact conditions can be maintained consistently even when the substrate is bent or warped, providing high repeatability and reproducibility. Small differences between the characteristics of individual pieces can be identified clearly.![[ Image ] High repeatability and reproducibility Before](./file/657/mp_micro_prober_feature_img02-1.jpg)
![[ Image ] High repeatability and reproducibility After](./file/658/mp_micro_prober_feature_img02-2.jpg)

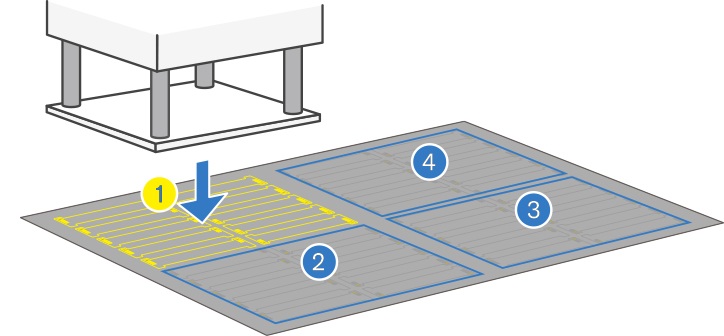

High throughput
Can be combined with multi-port VNA for use in mass production. Allows batch measurement of multiple pieces and multiple traces.![[ Image ] High throughput](./file/629/mp_micro_prober_feature_img03.jpg)

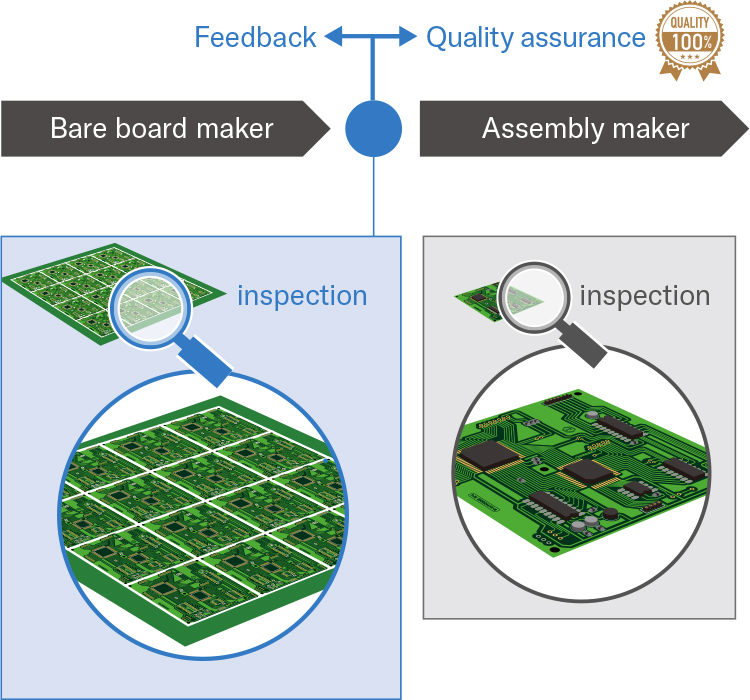

Visualization of quality and 100% guarantee

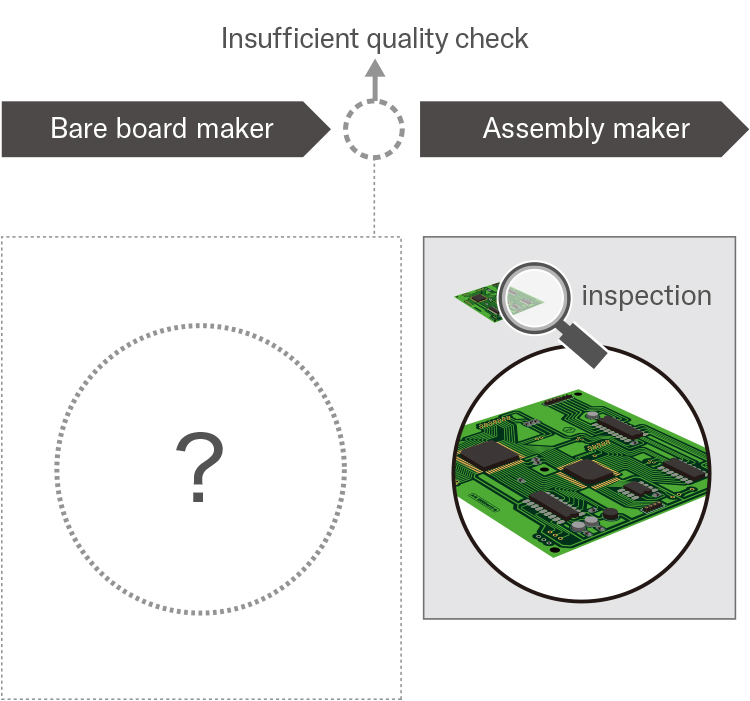

All real circuits on a bare board can be measured, allowing provision of feedback on quality to upstream processes, and ensuring quality for processes downstream.![[ Image ] Visualization of quality and 100% guarantee Before](./file/635/mp_micro_prober_feature_img04-1.jpg)
![[ Image ] Visualization of quality and 100% guarantee After](./file/638/mp_micro_prober_feature_img04-2.jpg)
Various measurement items

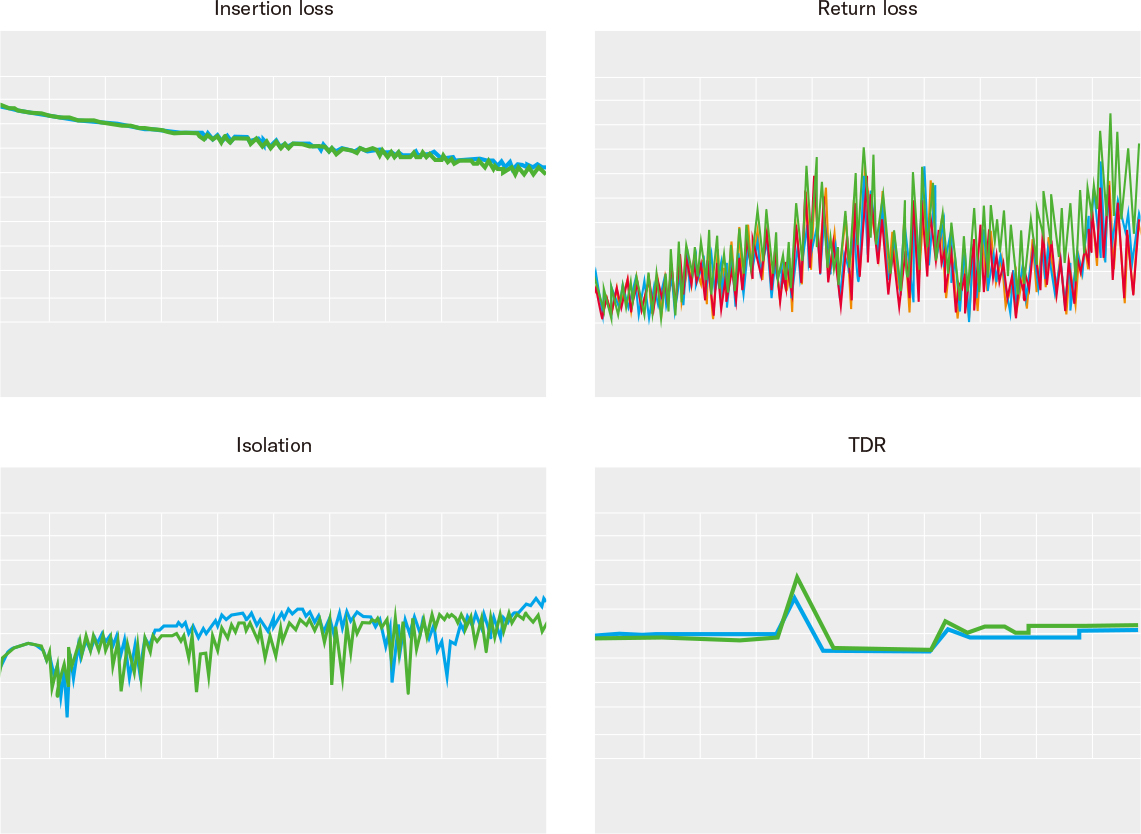

Combining commercial VNA allows measurement for a wide range of applications. (VNA = Vector Network Analyzer)![[ Image ] Various measurement items](./file/639/mp_micro_prober_feature_img05.jpg)

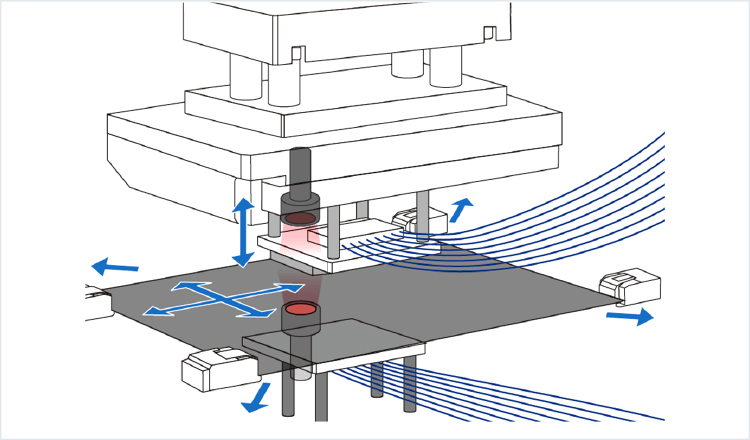

Double-sided inspection
Independent upper and lower probing test heads allow measurement of substrates with test points on both sides.![[ Image ] Double-sided inspection](./file/632/mp_micro_prober_feature_img06.jpg)
Easy operation
Simple fixture switching system and automatic contact position adjustment allows use without relying on operator skill.![[ Image ] Easy operation](./file/637/mp_micro_prober_feature_img07.jpg)

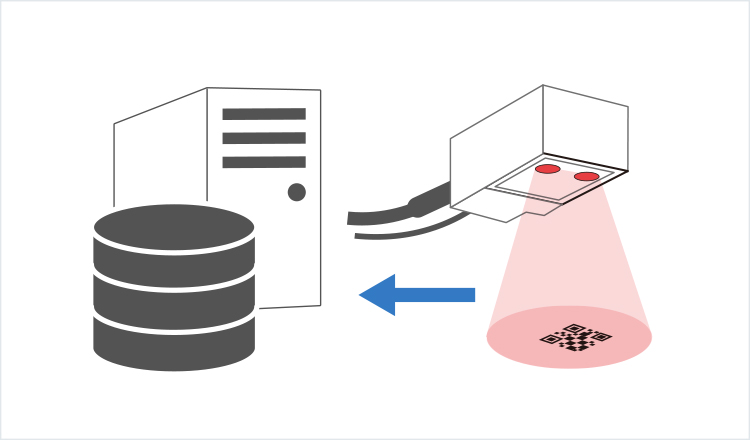

100% traceability
Links measurement results for individual pieces with a 2D barcode on the substrate, and saves them automatically.![[ Image ] 100% traceability](./file/630/mp_micro_prober_feature_img08.jpg)

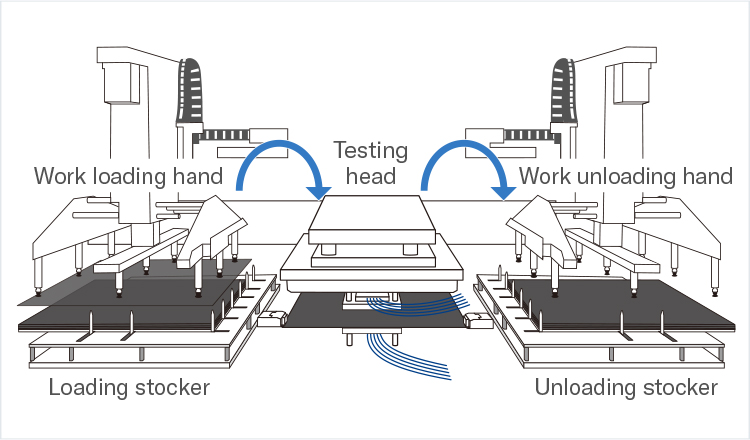

Auto-loader and unloader*1
Completely automated loading and unloading of substrates, helping to reduce labor requirements and standardize quality.*1 Option
![[ Image ] Auto-loader and unloader](./file/636/mp_micro_prober_feature_img09.jpg)
Application examples
![[ Image ] Rigid PCB](./file/461/work_rigid_img.jpg)
Rigid PCB
![[ Image ] Flex PCB](./file/451/work_flexible_img.jpg)
Flex PCB
![[ Image ] Rigid Flex PCB](./file/453/work_rigidflex_img.jpg)
Rigid Flex PCB
