For width: 510 mm, roll to roll, large size pieces MT512-GFR
For width: 510 mm, roll to roll, large size pieces
MT512-GFR
MT512-GFR

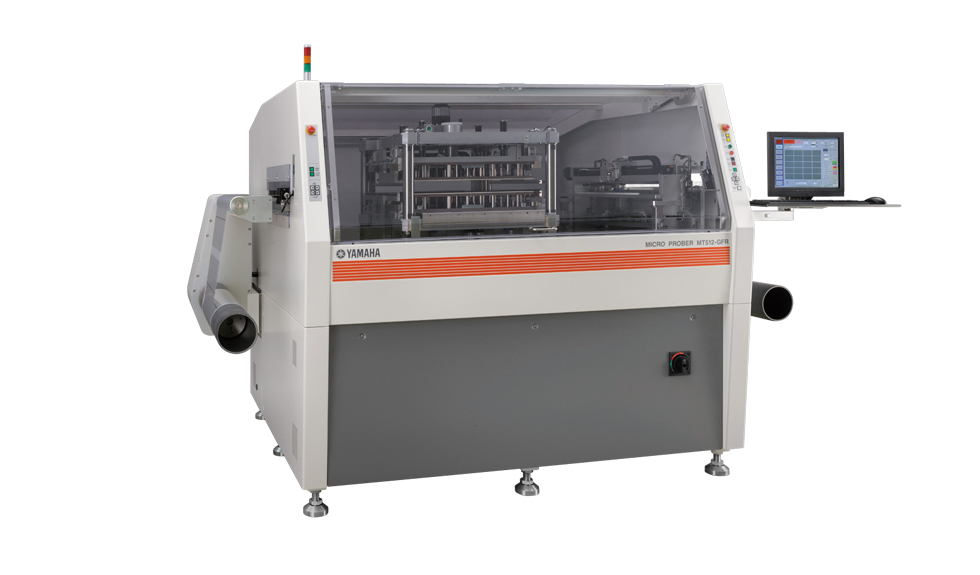

![[ Image ] For width: 510 mm, roll to roll, large size pieces MT512-GFR](./file/274/mt512_gfr_main.jpg)
A 510 mm wide roll transfer type machine. This model is best suited for inspection of large sized chips. Continuity/insulation inspection with ±5 μm high accuracy is possible. With the grip feeding system, which is unlikely to damage work sheets, work sheets are fed.
Applications
| Application examples |
|
|---|
![[ Image ] Touch panel (ITO)](./file/455/work_touchpanel_img.jpg)
| Max. work sheet size | Roll width : 510mm |
|---|---|
| Max. test fixture size | When not rotating：X600 / Y500mm |
| Work sheet transfer | Loading：Roll Unloading：Roll |

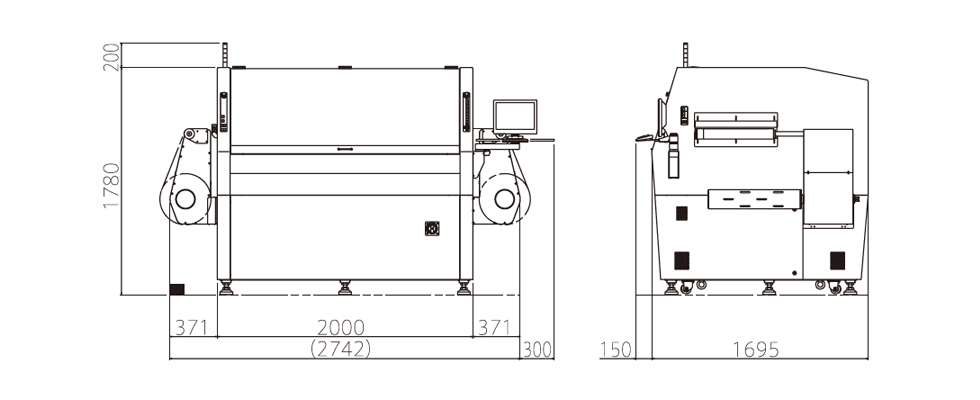

Dimensions
MT512-GFR
![[ Image ] Dimensions MT512-GFR](./file/275/mt512_gfr_size.jpg)
Specifications
| Model | MT512-GFR | ||
|---|---|---|---|
| Type | MT512-GFR-N | ||
| Application examples | Touch panel (ITO) | ||
| Test capability | Max. number of test points | Upper head：1,022 / Lower head：1,022 | |
| Work sheet size | Roll witdh : 300～510mm | ||
| Max. test range*1 | X590 x Y490 mm | ||
| Max. test fixture size | When rotating: No rotation / When not rotating : X600 x Y500mm | ||
| Positioning accuracy*2 | ±5μm | ||
| Test specifications | Determination method | Open/short (pass/fail determined based on specified resistance value) | |
| Open test*2 | Test range: 2 wire test 10Ω～ 10kΩ (0.5mA,10mA) 4 wire test 1mΩ～ 500Ω (10mA, 40mA, 100mA) |
||
| Open voltage: 15V ～ 50V | |||
| Test accuracy: 2 wire test ±10% (50Ω～ 10kΩ), ±5Ω (10Ω～ 50Ω) 4 wire test ±10% (1mΩ～ 500Ω) |
|||
| Short test*2 | Test range: 100kΩ～ 100MΩ | ||
| Test voltage: 50V ～ 250V | |||
| Test accuracy: ±10% | |||
| Options | μ Short test, Spark detection, Heating test, Non contact test | ||
| Work sheet transfer | Loading / Unloading | Roll | |
| Image processing | Camera view | X4.8 x Y3,6mm (standard) | |
| Pattern detection | Pattern recognition via grayscale | ||
| Illumination type | Transmission light, reflection light | ||
| Hardware | Interface | LAN・USB | |
| Display | 15 inch LCD with touch panel | ||
| Software | OS | Windows7 | |
| Production support function | Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count | ||
| Usage environment | Weight | Approx. 3,250kg | |
| Power supply | 3-phase, 180 to 240V AC, 50/60Hz, 6kVA | ||
| Dry air | 0.5MPa | ||
- The actual test range varies depending on the fixture shape, holding range, etc.
- Data taken from our performance test.
