For width: 620 mm, roll to roll, small to medium size pieces MR622-GFR
For width: 620 mm, roll to roll, small to medium size pieces
MR622-GFR
MR622-GFR

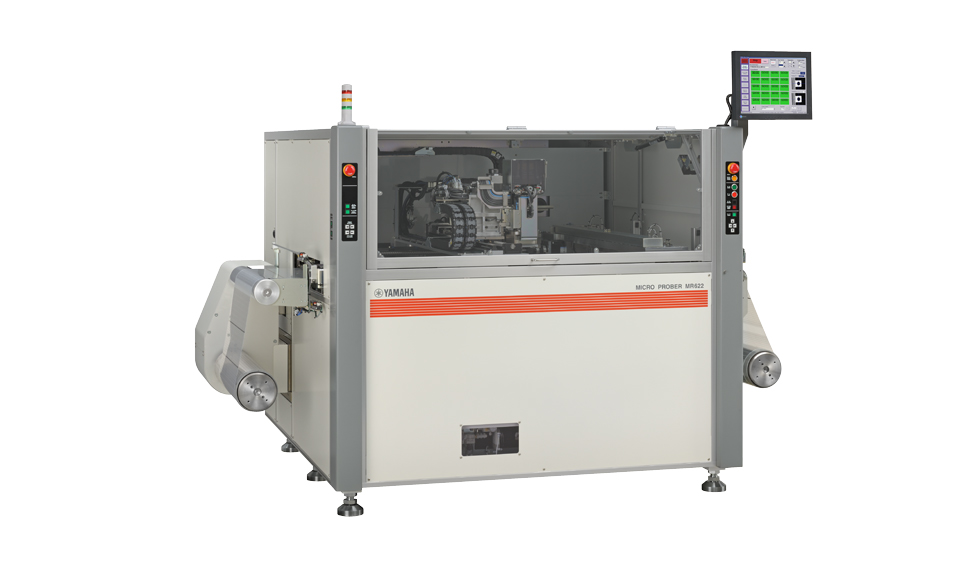

![[ Image ] For width: 620 mm, roll to roll, small to medium size pieces MR622-GFR](./file/270/mr622_gfr_main.jpg)
A 620 mm wide roll transfer type machine. This model is best suited for inspection of small to medium sized chips. Continuity/insulation test with ±5 μm high accuracy is possible. With the grip feeding system, which is unlikely to damage work sheets, work sheets are fed.
Applications
| Application examples |
|
|---|
![[ Image ] Touch panel (ITO)](./file/455/work_touchpanel_img.jpg)
| Max. work sheet size | Roll width : 620mm |
|---|---|
| Max. test fixture size | When rotating：φ200mm When not rotating：X275 x Y100mm |
| Work sheet transfer | Loading：Roll Unloading：Roll |
Dimensions
MR622-GFR

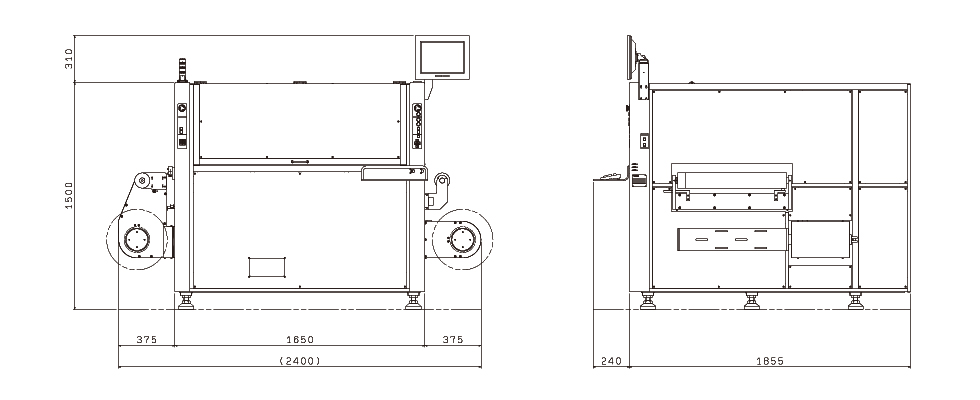

![[ Image ] Dimensions MR622-GFR](./file/271/mr622_gfr_size.jpg)
Specifications
| Model | MR622-GFR | |
|---|---|---|
| Type | MR622-GFR-M5S | |
| Application examples | Touch panel (ITO) | |
| Test capability | Max. number of test points | Upper head：1,534 / Lower head：894 |
| Work sheet size | Roll witdh : 350～620mm | |
| Max. test range*1 | X600 x Y600 mm | |
| Max. test fixture size | When rotating：φ200mm / When not rotating：X275 x Y100mm | |
| Positioning accuracy*2 | ±5μm | |
| Test specifications | Determination method | Open/short (pass/fail determined based on specified resistance value) |
| Open test*2 | Test range: 2 wire test 10Ω～ 10kΩ (0.5mA,10mA) 4 wire test 1mΩ～ 500Ω (10mA, 40mA, 100mA) |
|
| Open voltage: 15V ～ 50V | ||
| Test accuracy: 2 wire test ±10% (50Ω～ 10kΩ), ±5Ω (10Ω～ 50Ω) 4 wire test ±10% (1mΩ～ 500Ω) |
||
| Short test*2 | Test range: 100kΩ～ 100MΩ | |
| Test voltage: 50V ～ 250V | ||
| Test accuracy: ±10% | ||
| Options | μ Short test, Spark detection, Heating test, Non contact test | |
| Work sheet transfer | Loading / Unloading | Roll |
| Image processing | Camera view | X2.4 x Y1.8mm (standard) |
| Pattern detection | Pattern recognition via grayscale | |
| Illumination type | Transmission light, reflection light | |
| Hardware | Interface | LAN・USB |
| Display | 15 inch LCD with touch panel | |
| Software | OS | Windows7 |
| Production support function | Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count | |
| Usage environment | Weight | Approx. 2,300kg |
| Power supply/th> | 1-phase, 180 to 240V AC, 50/60Hz, 6kVA | |
| Dry air | 0.5MPa | |
- The actual test range varies depending on the fixture shape, holding range, etc.
- Data taken from our performance test.
