Standard model/Automatic loading/unloading MR262-A

Standard model/Automatic loading/unloading
MR262-A

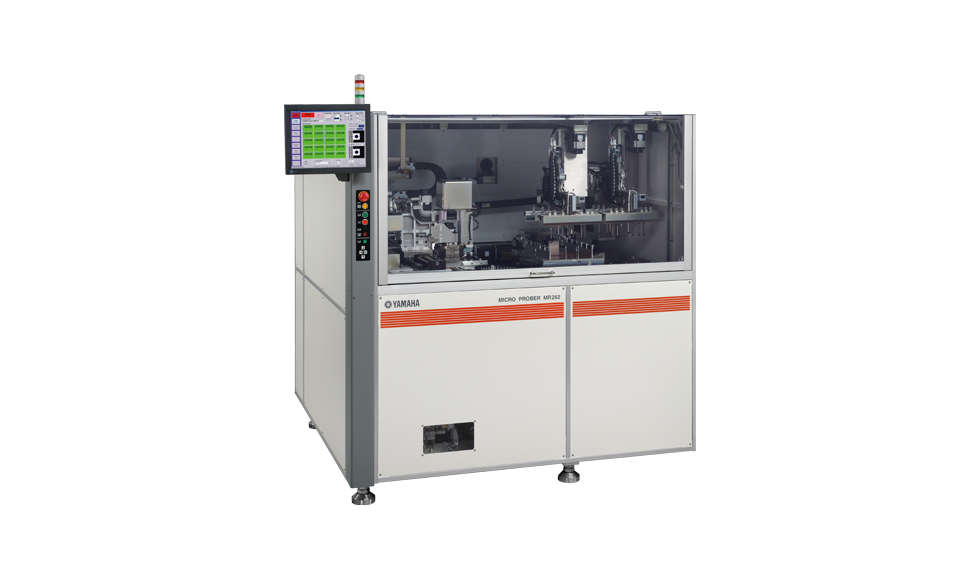

[ Image ] Standard model・Automatic loading/unloading MR262-A
A full-automatic type of machine in which a work sheet is loaded/unloaded automatically. Continuity/insulation inspection with ±5 μm high accuracy is possible. This machine contributes to labor savings.

Applications

Application examples
  • [ Image ] Flex PCB

    Flex PCB

  • [ Image ] Rigid Flex PCB

    Rigid Flex PCB

  • [ Image ] FC-CSP

    FC-CSP

  • [ Image ] FC-BGA

    FC-BGA
Max. work sheet size (X)260 x (Y)400mm
Max. test fixture size When rotating：φ200mm　When not rotating：X275 x Y100mm
Work sheet transfer Loading：Automatic　Unloading：Automatic

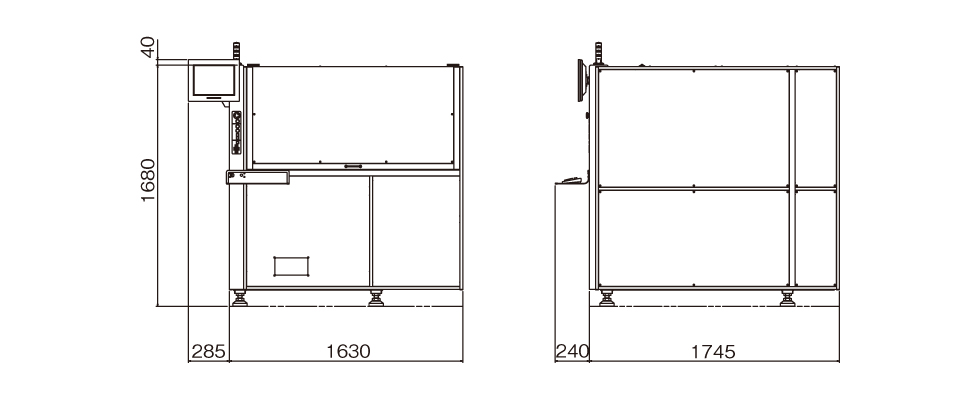

Dimensions

MR262-A
[ Image ] Dimensions　MR262-A

Specifications

Model MR262-A
Type MR262-A-DM5S MR262-A-M5S
Application examples Flex PCB, Rigid Flex PCB
Test capability Max. number of test points Upper head：2,046 / Lower head：2,046 Upper head：1,534 / Lower head：1,022
Work sheet size X70～260mm / Y100～400mm
Max. test range*1 Range excluding an area of X7.5 x Y9.0mm from four corners of work sheet
Max. test fixture size When rotating：φ200mm / When not rotating：X275 x Y100mm
Positioning accuracy*2 ±5μm
Test specifications Determination method Open/short (pass/fail determined based on specified resistance value)
Open test*2 Test range: 2 wire test 10Ω～ 10kΩ (0.5mA,10mA)
4 wire test 1mΩ～ 500Ω (10mA, 40mA, 100mA)
Open voltage: 15V ～ 50V
Test accuracy: 2 wire test ±10% (50Ω～ 10kΩ), ±5Ω (10Ω～ 50Ω)
4 wire test ±10% (1mΩ～ 500Ω)
Short test*2 Test range: 100kΩ～ 100MΩ
Test voltage: 50V ～ 250V
Test accuracy: ±10%
Options μ Short test, Spark detection, Heating test, Non contact test
Work sheet transfer Loading / Unloading Automatic
Image processing Camera view X2.4 x Y1.8mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN・USB
Display 15 inch LCD with touch panel
Software OS Windows7
Production support function Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count
Usage environment Weight Approx. 1,550kg
Power supply 1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. The actual test range varies depending on the fixture shape, holding range, etc.
  2. Data taken from our performance test.
