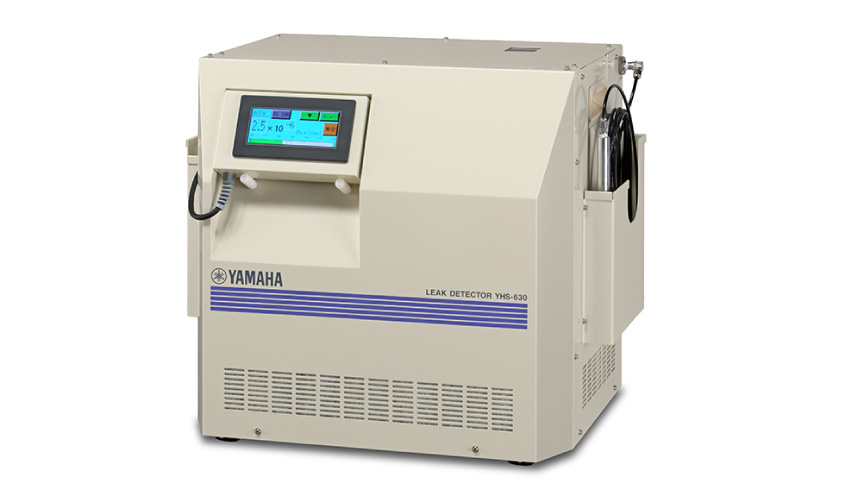

Sniffer Detector YHS-630
Sniffer Detector
YHS-630
YHS-630
![[ Image ] Sniffer Detector YHS-630](./file/335/sniffer_detector_main.jpg)
By putting its probe in direct contact with the workpiece, this detector can identify the leak location.

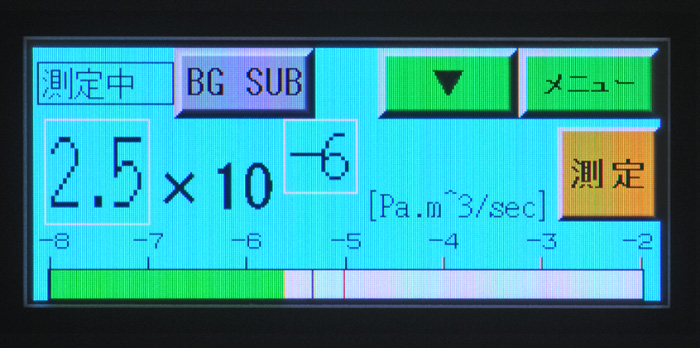

With the sniffer probe in direct contact with a workpiece, the sensor detects a leak. The leak location is identified. Since installation is easy, the cost of installation is low.- The touch panel easy to understand at a glance and easy to operate
![[ Image ] Touch panel](./file/336/sniffer_detector_img01.jpg)

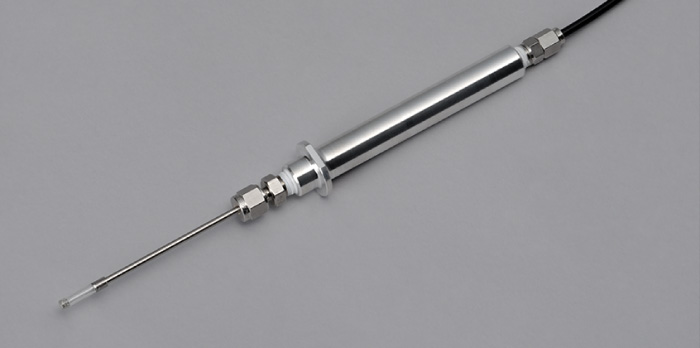

- Sniffer probe to be in direct touch with a workpiece for identifying the leak location
![[ Image ] Sniffer probe](./file/334/sniffer_detector_img02.jpg)
Applications
Application examples |
|
---|
Detection method | Sniffer method |
---|---|
Detectable leak rate | 1x10-6Pa~1×10--2Pa・m3/s |
Feature | Inline support possible |

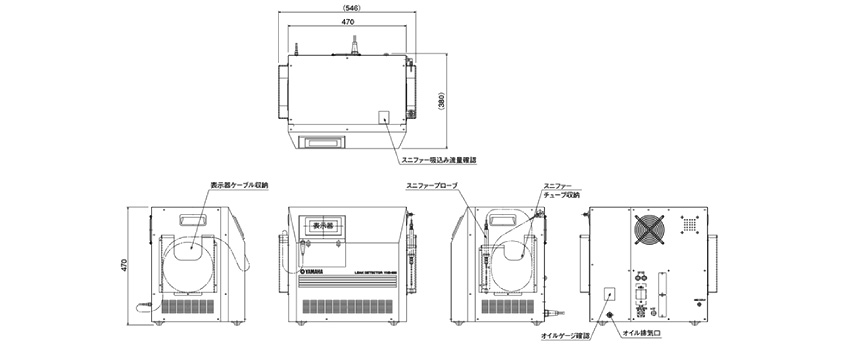

Dimensions
![[ Image ] Dimensions](./file/333/sniffer_detector_size_img01.jpg)
Specifications
Leak detector | YHS-600 |
---|---|
Judgment leak rate | 1×10-8~1×10-2Pa・m3/sec |
Minimum detection leak rate | 1×10-8Pa・m3/sec |
Startup time | 3 minutes |
Number of analysis tube filaments | Double Filaments (2) |
Analysis tube seal | Flat Gasket |
Calibration | External |
Temperature | 10~40℃ |
Humidity | 90% or less |
Power supply | AC 100V±10% Single phase 50 / 60Hz 10A |
Dimensions | W546mm x D378mm x H470mm |
Weight | 46kg |
