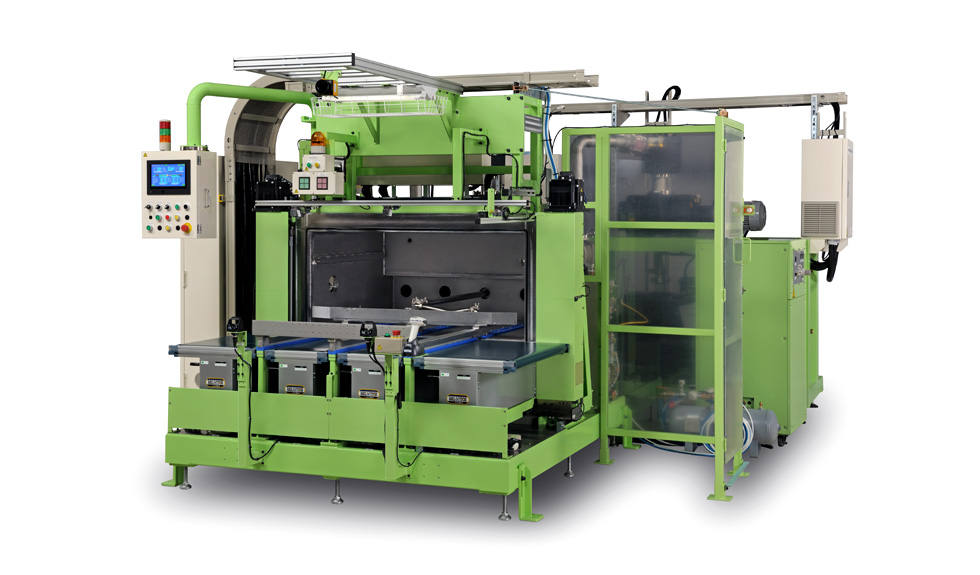

Leak Tester for Fuel Tanks
Leak Tester for Fuel Tanks
![[ Image ] Leak Tester for Fuel Tanks](./file/398/fuel_tanks_main.jpg)
With the differential pressure control function, this tester prevents warping and conducts an accurate inspection effectively without using a fixture.
The leak tester is specially used for fuel tanks for automobiles and motorcycles. Various fail-safe functions are provided to protect the inspection circuit when measuring a workpiece with heavy leakage.- ycle time: approximately 30 seconds *Depends on the equipment
- Various fail-safe functions provided. Inspection circuit protected when measuring a workpiece with heavy leakage
- Cost reduction possible with the warp prevention mechanism, which does not require any fixture.
Applications
| Application examples |
|
|---|
![[ Image ] Automobile fuel tank](./file/490/work_car-tanks_img.jpg)
![[ Image ] Motorcycle fuel tank](./file/496/work_motorcycle-tanks_img.jpg)
| Applicable tank size | Max. 1200 x 800 x 250mm |
|---|---|
| Detectable leak rate | 1.0x10-5Pa・m3/s |
| Detection method | Vacuum chamber method |

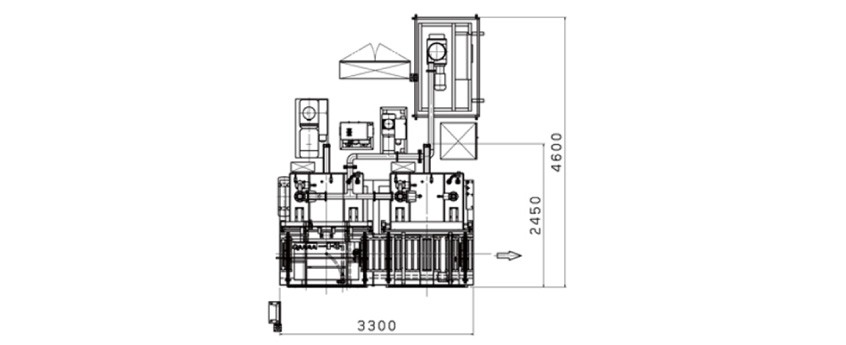

Dimensions
![[ Image ] Dimensions](./file/331/fuel_tanks_size_img01.jpg)
Specifications
| Type | Leak Tester for Fuel Tanks |
|---|---|
| Detection method | Vacuum chamber method |
| Cycle time | 30 seconds* (Standard specifications 2-chamber type) * The time varies depending on the specifications, program, and chamber section. |
| Workpiece size | Max. 1200 x 800 x 250mm |
| Detectable leak rate | 1.0×10-5Pa・m3/s |
| Helium charging pressure | -0.09MPa(G) |
| Chamber internal pressure | -0.1MPa(G) |
| Helium concentration | 100%* * As an option, a helium recycling unit can be installed. |
