Hydrogen Leak Detector Hydrogen Leak Detection System
Yamaha's hydrogen leak detectors quickly detect low-concentration hydrogen.
Provides next-generation quality control using a smartphone app.

Detect even tiny leaks
in just a second.

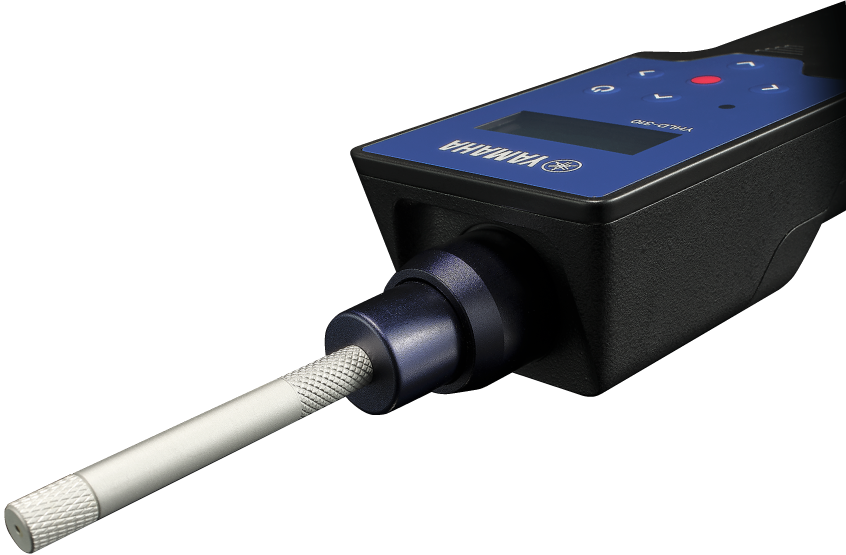

The YHLD-310 Super-High-Sensitivity Hydrogen Sensor responds to even tiny leaks of as little as 1.0×10-6Pa·m3/s in no more than a second. Yamaha's unique detection algorithm suppresses measurement variations due to environmental changes such as temperature and humidity, which have been a problem for conventional semiconductor hydrogen sensors. We achieve superior reproducibility, with precision of ±30%, in hydrogen gas detection at low concentrations.

Make everyday measurement
simple and easy.

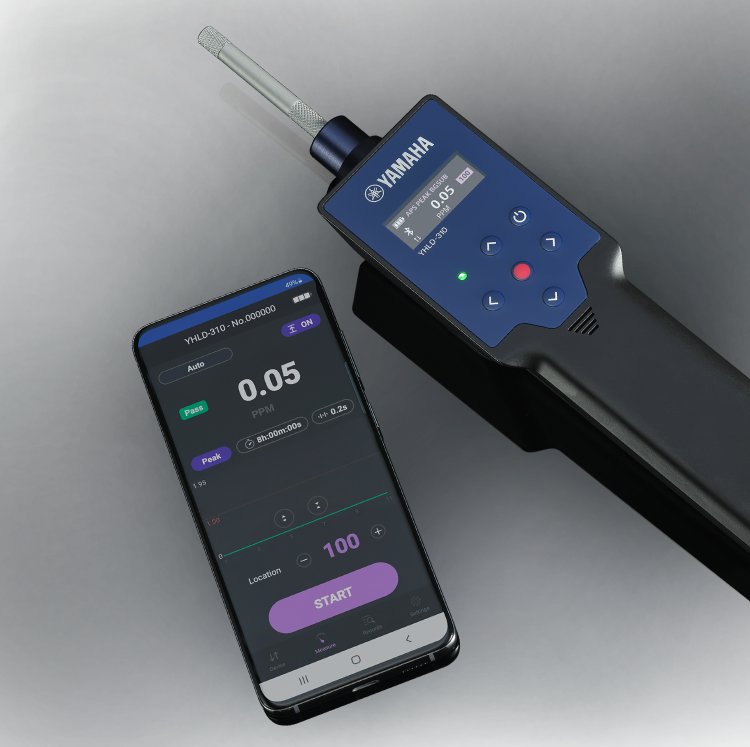

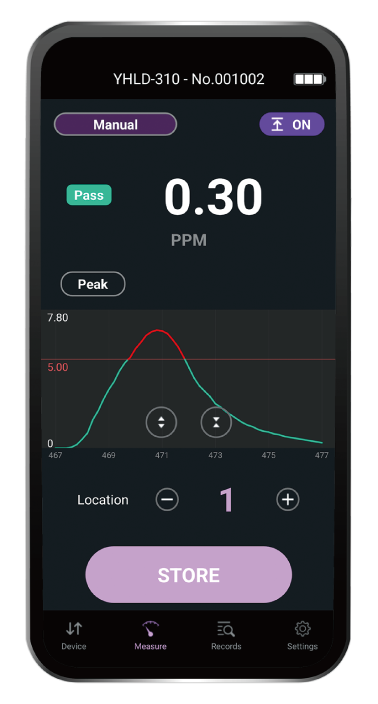

The YHLD-310 Control App will transform the way you work. Connect the detector to your mobile device via Bluetooth to visualize concentration fluctuations in real time and handle calibration and threshold setting with ease. Send measurement reports as they're output, as CSV files. Ensure traceability with records of leak locations and history checks.

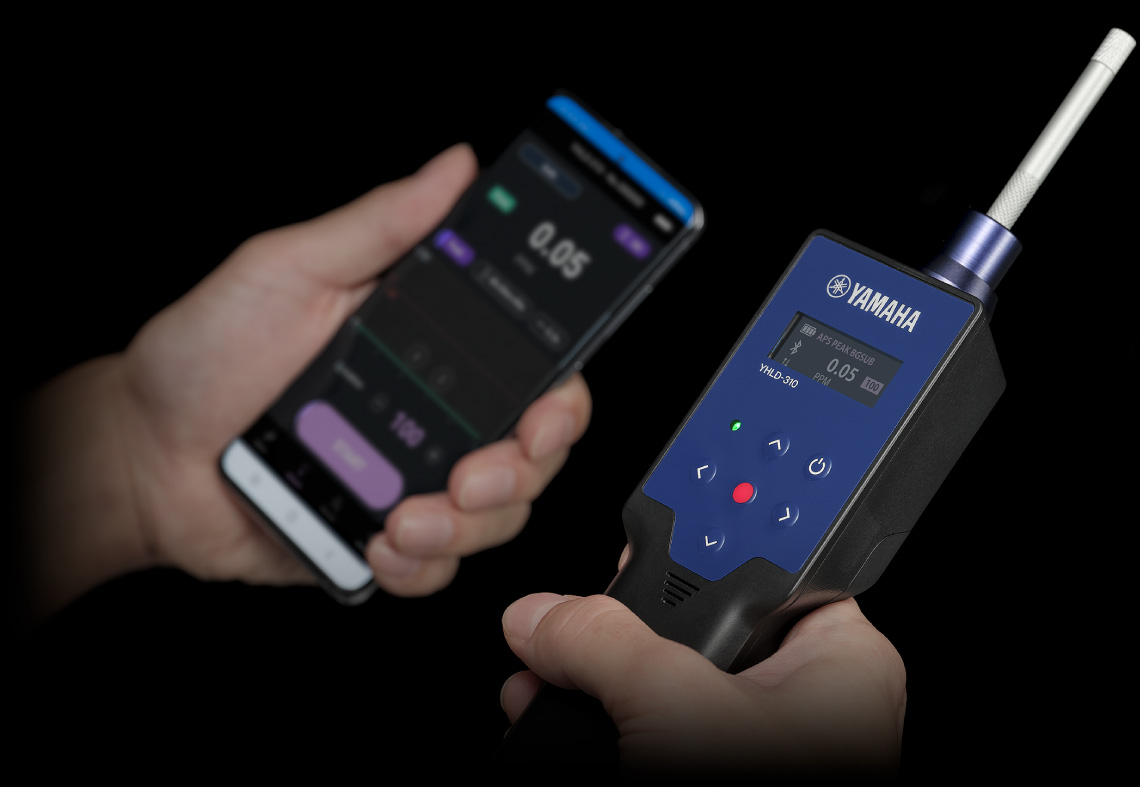

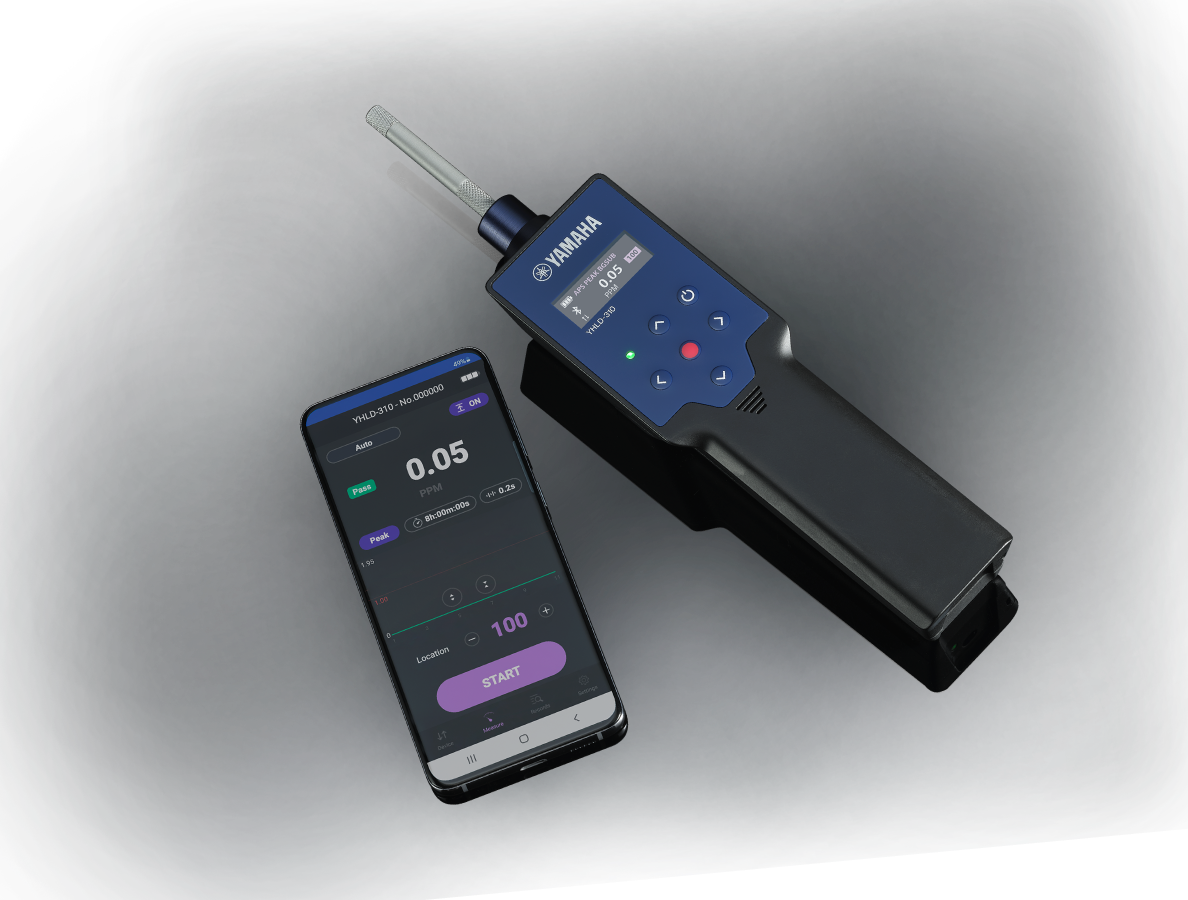

True wireless portability
You can carry detection capability for hydrogen concentrations of 0.05ppm-1,000ppm easily, anywhere. With the broad applicability to diverse measurement needs and target workpieces, you can use this instrument in fields ranging from manufacturing to research. Weighing just 340g, with ergonomic design for ease of use, this product takes the load off the operator. The power source is alkaline AA batteries, which are easily available around the world.


Functions

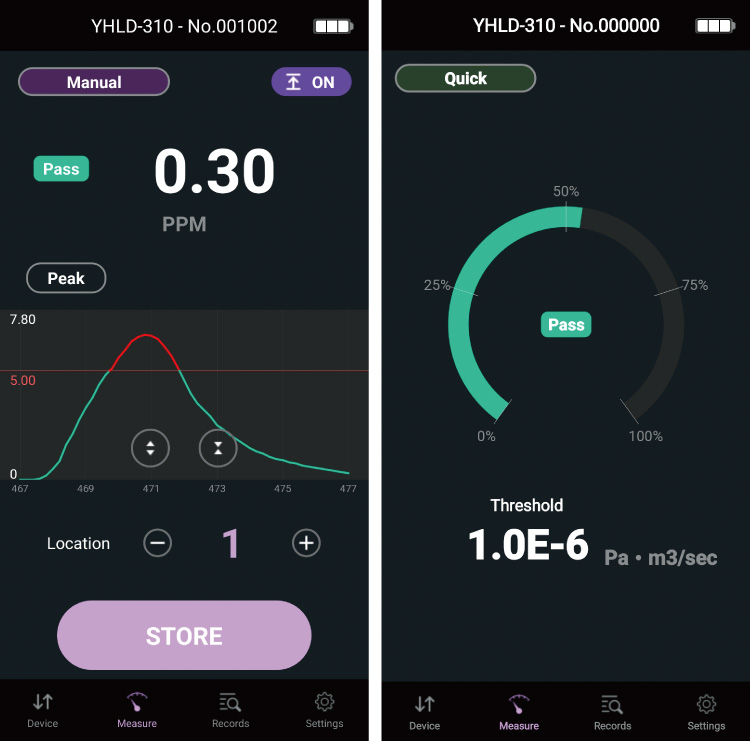

Measurement and Display
Gas concentrations are displayed in real time, numerically and graphically. Manual/Auto Modes can record diverse data, and Quick Mode can judge rapidly whether gas leakage exceeds the threshold value.
![[ Image ] Measurement and Display](./file/1092/h_leakdetector_img05.jpg)

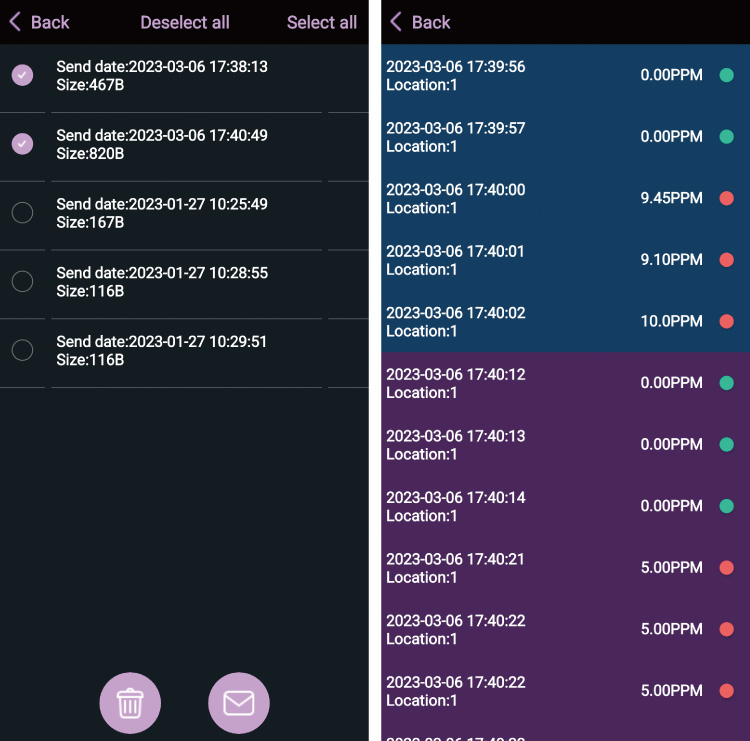

Recording and Transmission
Other than date/time and measured values, leak locations and judgment results can also be recorded. Auto Mode can also record continuous data for up to eight hours. You can send data as CSV file email attachments.
![[ Image ] Recording and Transmission](./file/1093/h_leakdetector_img06.jpg)

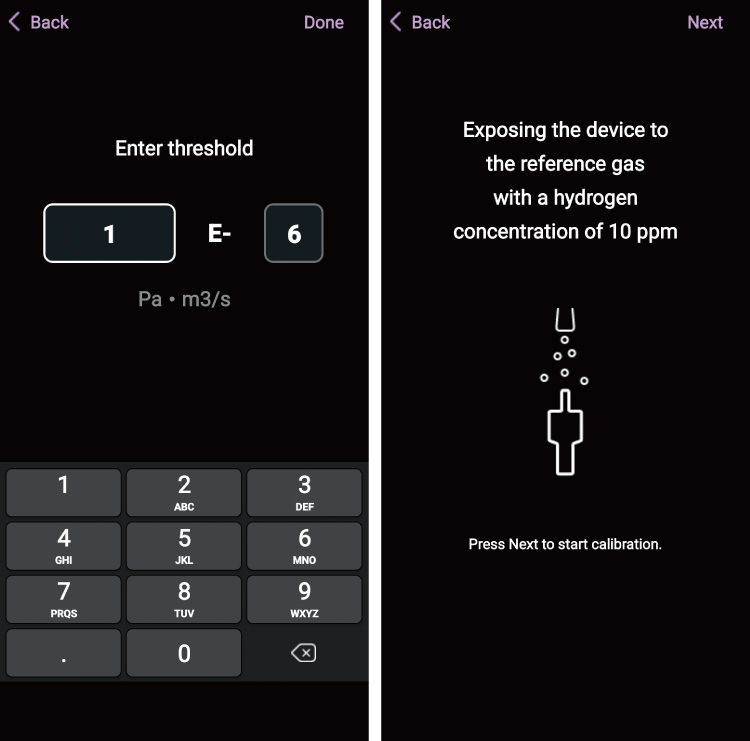

Settings and Calibration
You can change measurement units and check record history. In Auto Mode, you can make flexible settings for sampling intervals and recording time. Key items, such as threshold values and calibration, are passcode protected.
![[ Image ] Settings and Calibration](./file/1091/h_leakdetector_img07.jpg)




Applications
QA/QC for industrial products
Automobile parts, Heat exchangers, Sealed packaging
![[ Image ] QA/QC for industrial products](./file/1095/h_leakdetector_img08.jpg)

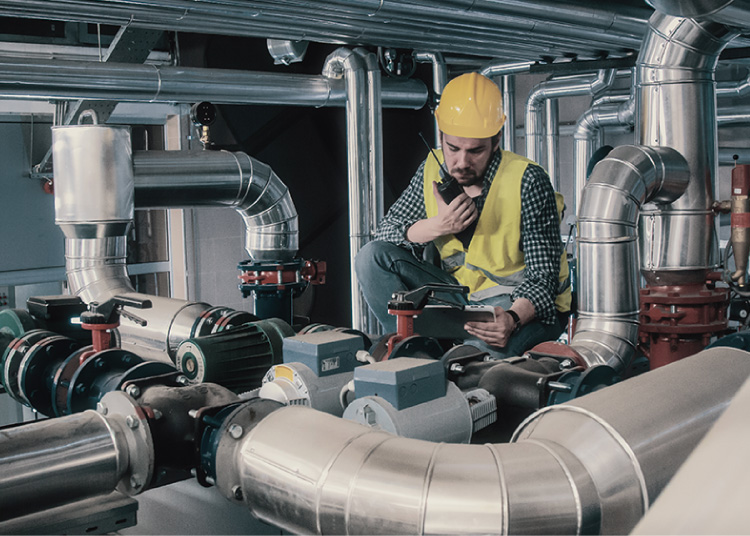

Daily inspections of equipment
Welded piping, Pressure tanks, Vacuum chambers
![[ Image ] Daily inspections of equipment](./file/1096/h_leakdetector_img09.jpg)
R&D measurement and analysis
Atmospheric environment, Aerospace, Medical and pharmaceutical
![[ Image ] R&D measurement and analysis](./file/1094/h_leakdetector_img10.jpg)
FAQ
- What are the advantages of using hydrogen?
- You can measure for leaks with high sensitivity using a cheap and safe blend of industrial gases (5% H2 + 95% N2).
- Can I get a product description online?
- Yes. Please use this contact form to contact us.
- Where can I get a product catalog?
- Please use this contact form to ask for a catalog.
- Where can I check prices and delivery times?
- Please use this contact form to ask.
- Can I rent a demo machine or run sample tests?
- Yes. Please use this contact form to contact us.
