High-speed model/large sheet support F602 L2

High-speed model/large sheet support
F602 L2

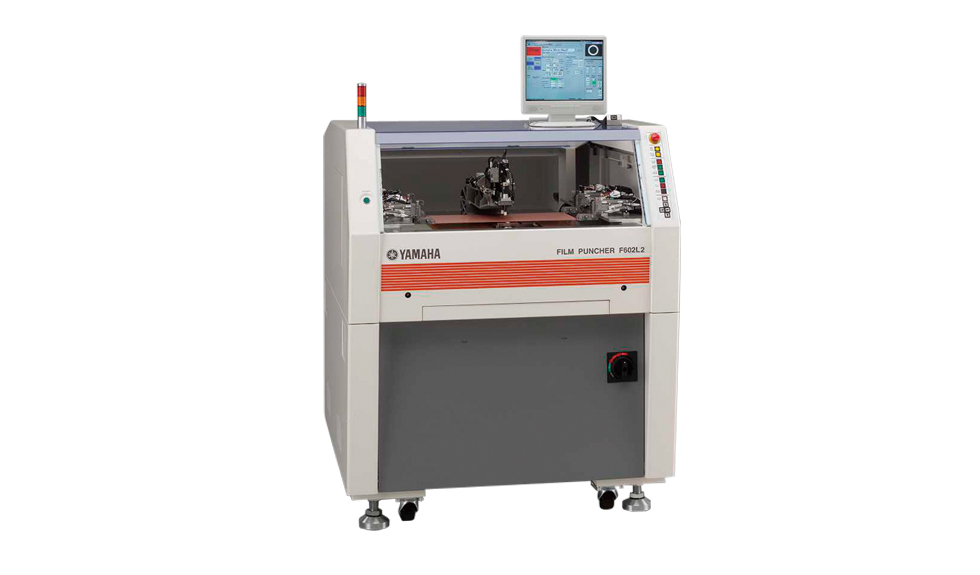

[ Image ] High-speed model・large sheet support F602 L2
Standard type of machine in which a work sheet is loaded/unloaded manually. With an electric punching head, high-speed (0.27 seconds/hole) and high-accuracy (±20 μm) punching is possible.

Applications

Application examples
  • [ Image ] Flex PCB, PI film

    Flex PCB, PI film

  • [ Image ] Touch panel

    Touch panel

  • [ Image ] Various film materials

    Various film materials
Max. work sheet size X545 x Y600mm
Processing speed 0.27 s/hole
Work sheet transfer Loading：Manual　Unloading：Manual

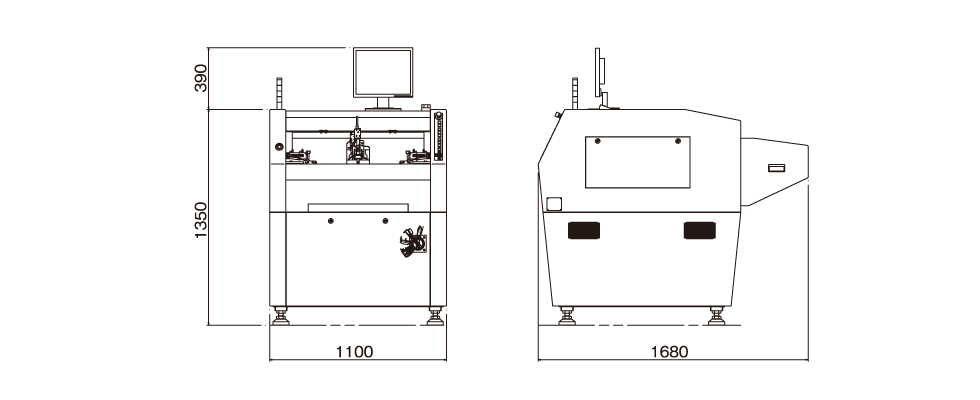

Dimensions

F602 L2/LP2
[ Image ] Dimensions　F602 L2/LP2

Specifications

Model F602L2
Type F602L2
Application examples Flex PCB, Various film materials
Processing capability Work sheet size X250～545mm / Y250～570mm (280~600)
Range X: Range excluding 12mm margin from left/right ends of workpiece
Y: Entire workpiece
* Max. 570mm for the second head
Speed*1 0.27 s/hole
Accuracy*1 ±20μm
Punching head Punching type Electric punching head
No. of heads 2
Work sheet transfer Loading / Unloading Manual
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output
Usage environment Weight Approx. 1,040kg
Power supply 1-phase, 200 to 240V AC, 50/60Hz, 3kVA
Dry air 0.5MPa
  1. Data taken using our test work sheet
