Roll to Roll supported model・large sheet support F500DC-RTR

Roll to Roll supported model・large sheet support
F500DC-RTR

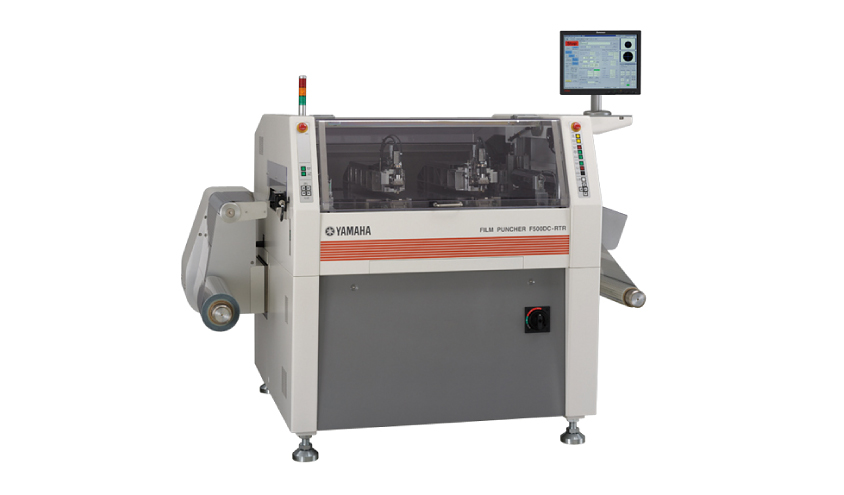

[ Image ] Roll to Roll supported model・large sheet support　F500DC-RTR
A 500 mm wide roll transfer type machine. With a double-arm electric punching head, high-speed (0.11 seconds/hole) and high-accuracy (±20 μm) punching is possible.

Applications

Application examples
  • [ Image ] Flex PCB, PI film

    Flex PCB, PI film

  • [ Image ] Touch panel

    Touch panel

  • [ Image ] Various film materials

    Various film materials
Roll to Roll supported model Roll witdh : Max. 500mm
Processing speed 0.11 s/hole

Dimensions

F500DC-RTR

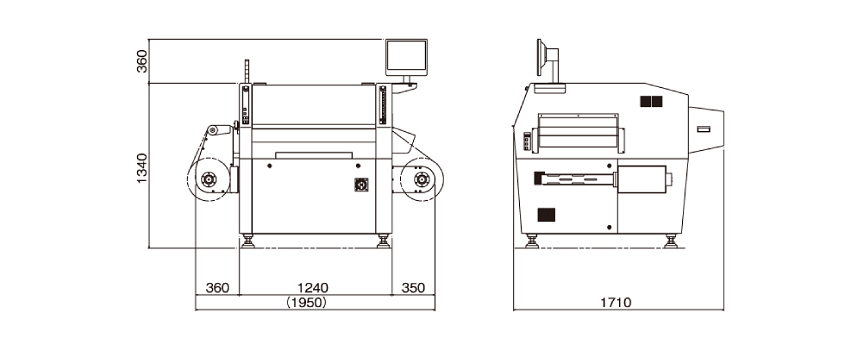

[ Image ] Dimensions　F500DC-RTR

Specifications

Model F500DC-RTR
Type F500DC-RTR-3N
Application examples Flex PCB, Various film materials
Processing capability Work sheet size Roll witdh : 250~500mm
Range X610mm x Y500mm
Speed*1 0.11 s/hole
Accuracy*1 ±20μm
Punching head Punching type Electric punching head
No. of heads 4
Work sheet transfer Loading / Unloading Roll to Roll
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output
Usage environment Weight Approx. 1,670kg
Power supply 3-phase, 200 to 240V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. Data taken using our test work sheet
